Basic Well log Correlation Based on Lithofacies character and Wireline logs - Solutoin

Click on Thumbnail on left to access .pdf file of image to print at any scale! Below is .jpg image.

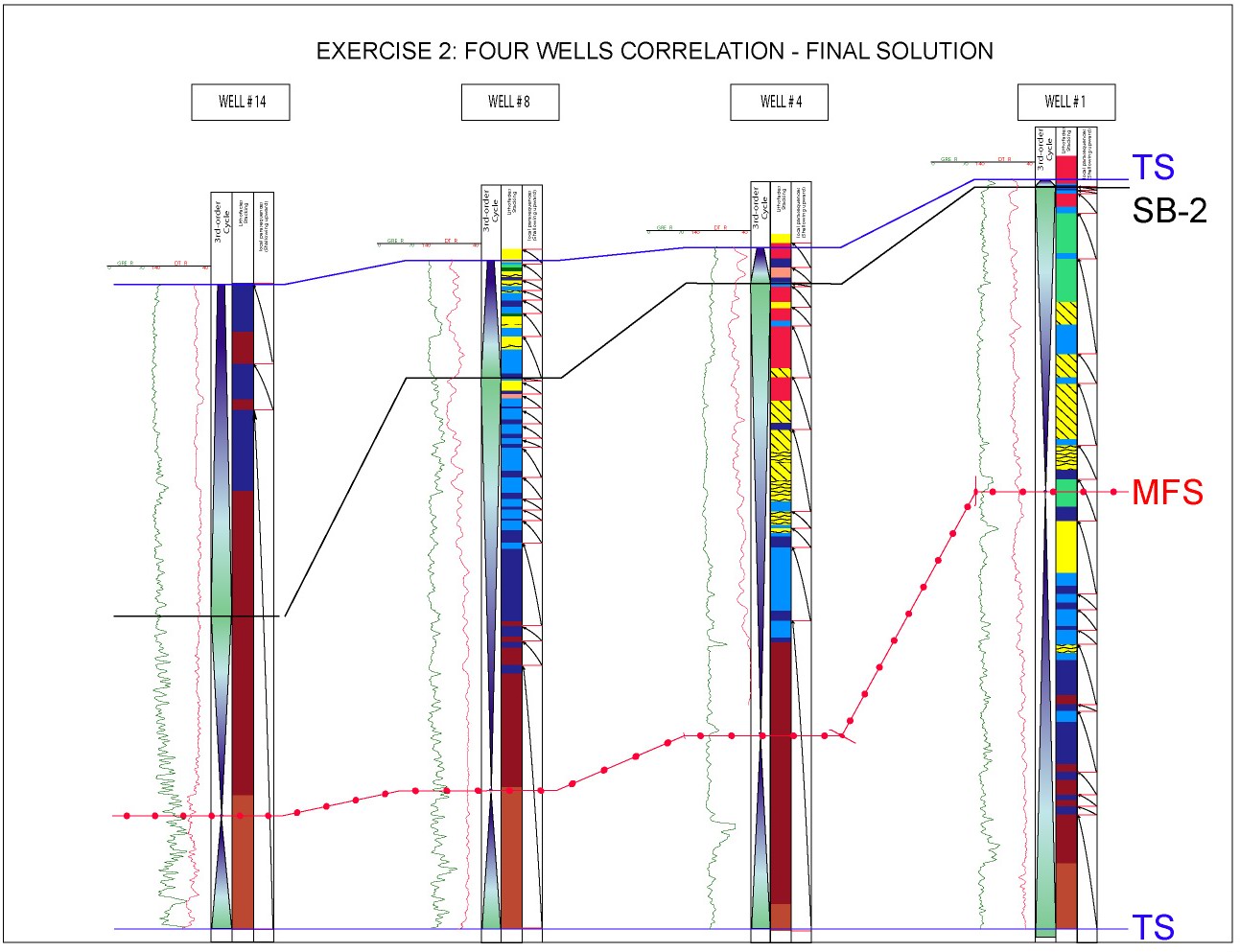

Lower TS is the transgressive surface which is used as a datum and a lower boundary for the sequence. Other major surfaces are identified include the sequence MFS (Maximum Flooding Surface) and SB-2 (type-2 sequence boundary). Shoaling upward cycles bounded by abrupt deepening are identified for each well. The overall low-scale cycle trend is also interpreted (green column).
