Sedimentary sections are subdivided by a variety of surfaces that envelope & enclose discrete geometric bodies of sediment. The partings with the greatest frequency are those in shales but bedding planes are the commonest of these surfaces to catch the geologists eye and are used by sequence stratigraphers to interpret the origin of the sedimentary section.

Brookfield (1977) was one of the first to recognize the importance of hierarchical order to the boundaries seen in sedimentary rocks. He applied this concept to the Stokes (1968) surface boundaries that occur in aeolian sediments. He classified these as:

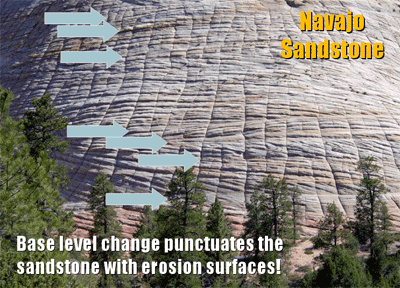

First order boundaries that cut across underlying aeolian sediments when the migration of “draa” dunes occured
Second order that were related to migration of transverse dunes
Third order boundaries that enclose groups of laminae interpreted to be the products of local events within the depositional cycle

Allen (1983) describing fluviatile systems recognized that boundaries of sedimentary bodies may be non-erosional or erosional. He identified four surfaces:-

Concordant - non-erosional (normal bedding)
Discordant - non-erosional reactivation surface
Concordant - erosiona
Discordant - erosional contacts

Working with braided streams, Allen (1983) applied these surfaces to at least eight geometric shapes with specific lithologies that he named "architectural elements”. Miall (1985) utilized this concept of depositional architectural elements to further classify and communicate information on the character and origins other fluvial depositional systems.

The application of the concepts of architectural elements is now widely used for most depositional systems. For example Pickering et al (1998) subdivided deeper water sedimentary bodies, recognizing a hierarchy of enveloping boundaries that genetically related discrete stratigraphic “architectural elements", "bodies", or "units" or “groups”. Others, including Sprague et al 2008, used a top-down hierarchical classification of "architectural elements" for deep-water settings that starts at a sedimentary basin scale. They both sub-divided downward these form a series of broad elements includes the larger stacked channel complexes, in turn subdivided ever downward to an ultimate subdivision of of laminae or even the individual sand grain. This top down classification is used to provide a framework of the basin to its interrelated broader larger scale "architectural elements" and their tie to the smaller scale "architectural elements". This can be inverted from small to large equally effectively. Pickering et al (1998) expressed this as an interpretive characterization of a sedimentary feature distinguished on the basis of its geometry, scale and facies.

Sequence stratigraphers use a framework of certain of these surfaces or boundaries to define "sequences" and the "systems tracts" they contain. The commonest boundaries and surfaces used in this characterization are:

The enveloping sequence boundary (SB) of a sequence, or its down dip correlative conformity, lies between the highstand systems tract (HST) and the falling stage systems tract (FSST)
Basal surface of falling stage systems tract (FSST) (Plint and Nummedal, 2000) (also known as the early lowstand systems tract (ELST) (Posamentier and Allen, 1999)
Transgressive surface (TS) that lies over the Lowstand System Tract (LST) and the transgressive systems tract (TST)
Maximum flooding surface (mfs)

Sequence stratigraphic interpretation involves the identification of the subdividing "surfaces" that envelope and enclose discrete geometric bodies of sediment. It tracks these in order from oldest to youngest. They are mentally disassembled (backstripped) and then reassembled in order in which they formed. This reassembly considers the subdividing surfaces, geometry, lithofacies and fauna and their evolving character in terms of the depositional setting. ‘‘Each stratal unit is defined and identified only by physical relationships of the strata, including lateral continuity and geometry of the surfaces bounding the units, vertical stacking patterns, and lateral geometry of the strata within the units." (Van Wagoner et al., 1990).

In the process of interpreting the origins of these surfaces, the depositional setting and gross sedimentary geometry of the rocks that form that sequence are established. Underlying these interpretations is the use of a simplified version of Walther's Law that states:

Sedimentary facies with adjacent depositional settings in plan view will succeed one another in a vertical progression of facies within a system tract or a sequence.

Paradoxically the surfaces used to subdivide stratigraphic sections are diachronous (transgress time), rendering Walther's law invalid. However, if in the process of interpretation, the diachronous character of the surfaces is ignored, an oversimplified version of Walther's Law can be applied to vertically adjacent sediments subdivided by the surfaces within the system tract or a sequence. The result is a powerful interpretation of depositional setting and a prediction of gross sedimentary geometry, both of which combine data from these boundaries and the parasequence stacking patterns exhibited by the systems tracts (Van Wagoner et al., 1988).

The terminology of a number of the surfaces used in sequence stratigraphy are listed in the table below (modified from Catineanu, 2006). Highlighted in red are the more commonly used terminology for boundaries and surfaces used to characterize sequences and their systems tracts. The less commonly used terms and surfaces associated with shallow shelf clastics and the immediate shoreline are not highlighted.

Surfaces of sequence stratigraphy

Base level Fall	Base level Rise
Sequence boundary (SB) (and its correlative conformity)	Maximum regressive surface
Basal surface of forced regression	Transgressive surface (TS or ravinement)
Regressive surface of marine erosion	Maximum flooding surface (mfs)

To conclude the fundamental keys to sequence stratigraphic interpretation are the surfaces that subdivide the sedimentary section. Unfortunately the nomenclature of each of these sequence stratigraphic surfaces is constantly changing as our understanding of sedimentary systems and their interpretation improves. Though the changes in nomenclature are well intentioned they often add to the confusion to a scientific methodology that is already weighed down with complex multi-word and multi-syllable terminology. A surface can be given a name that has been used before for a different surface. The innocent reader, even the seasoned stratigrapher, not knowing the terminology has been changed and lacking the understanding of the reason for the change, may feel that they are going stark raving mad as they try to make sense of what they read.
