Appalachian Maps & Diagrams


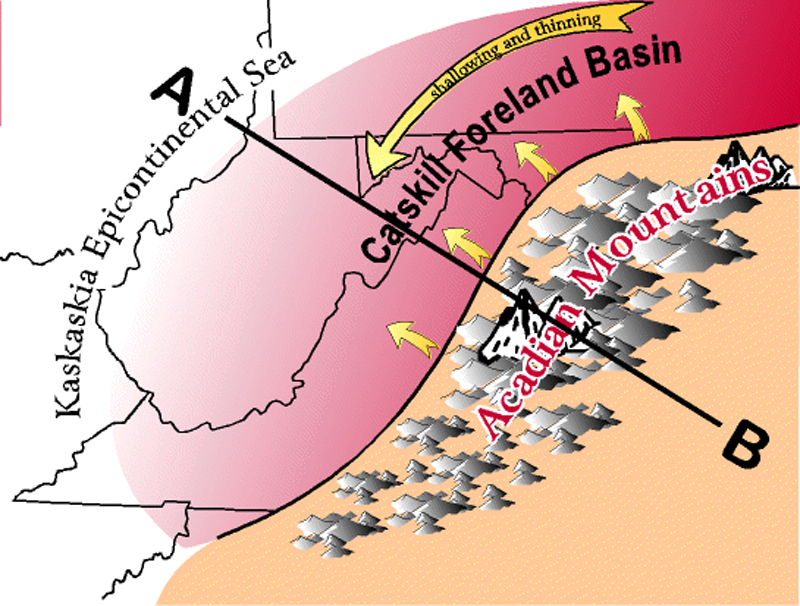

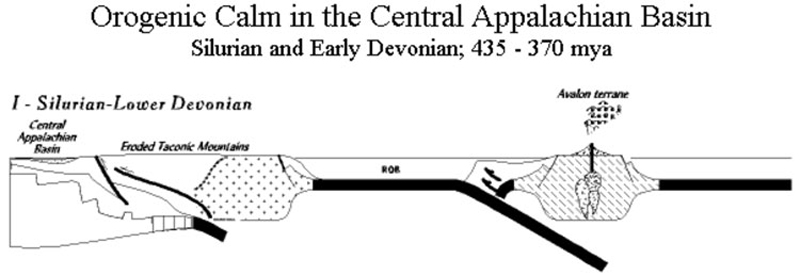

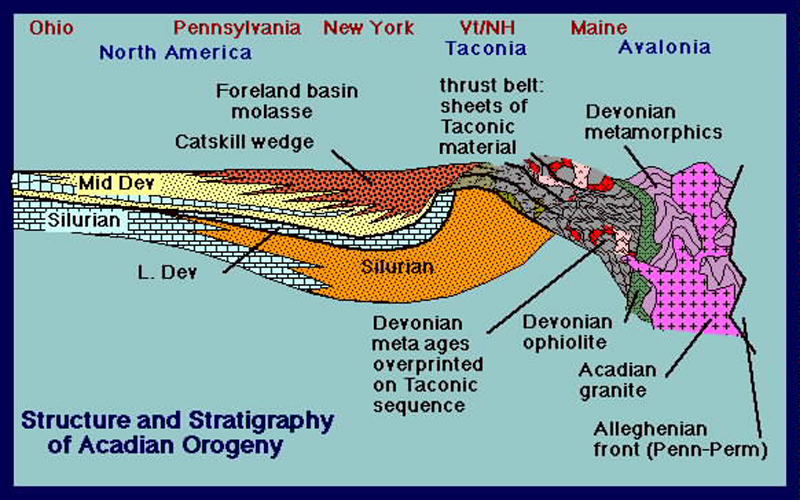

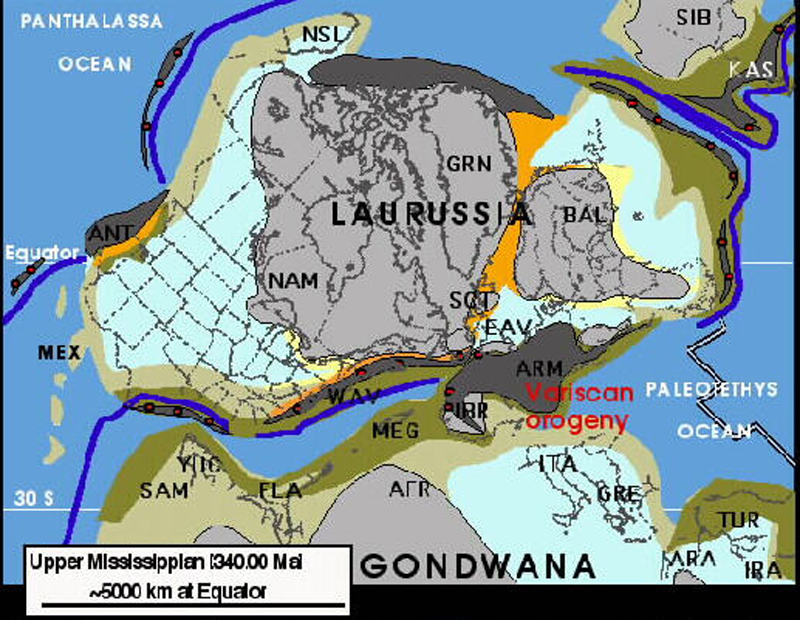

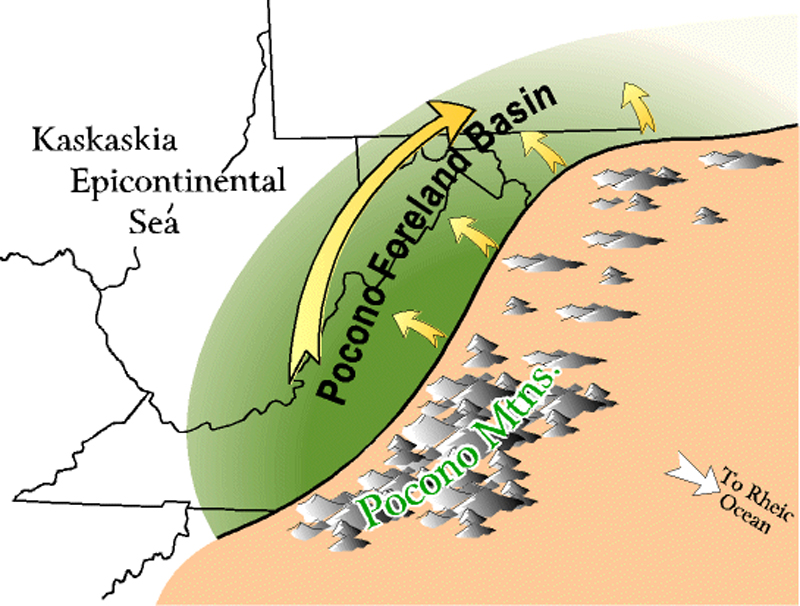

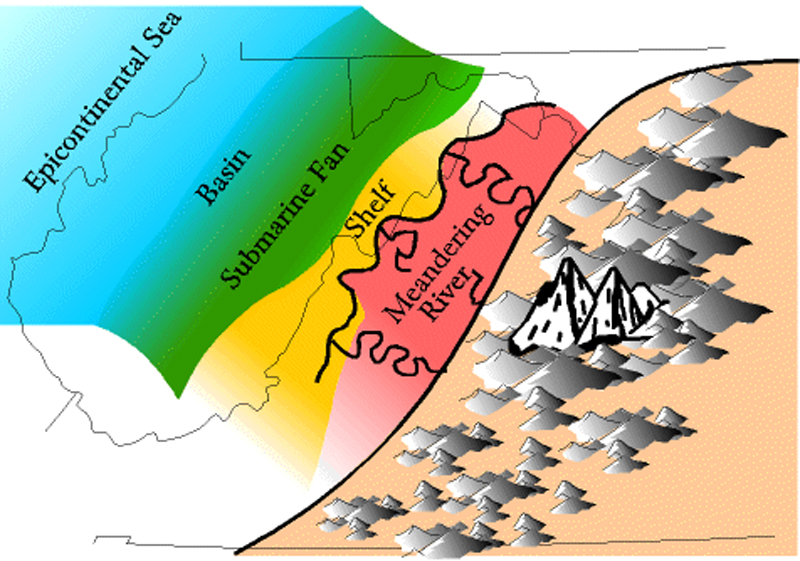

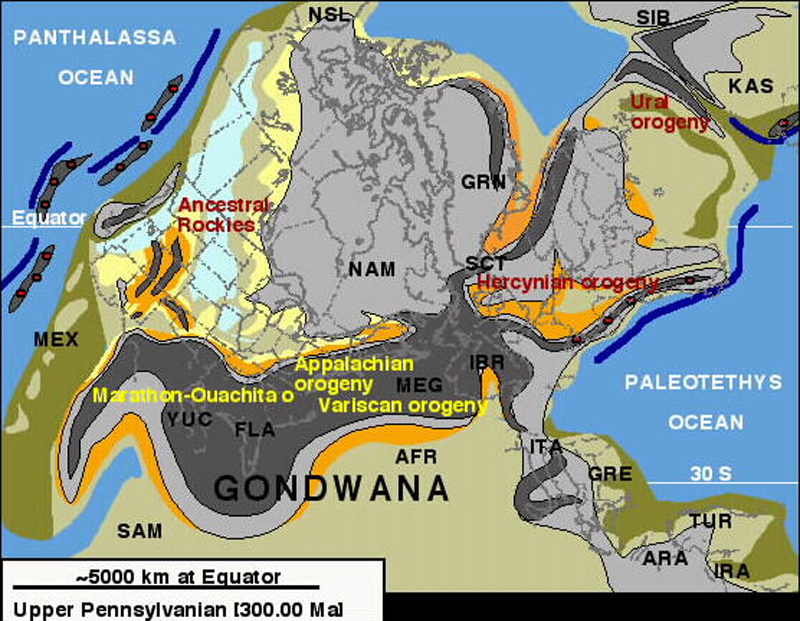

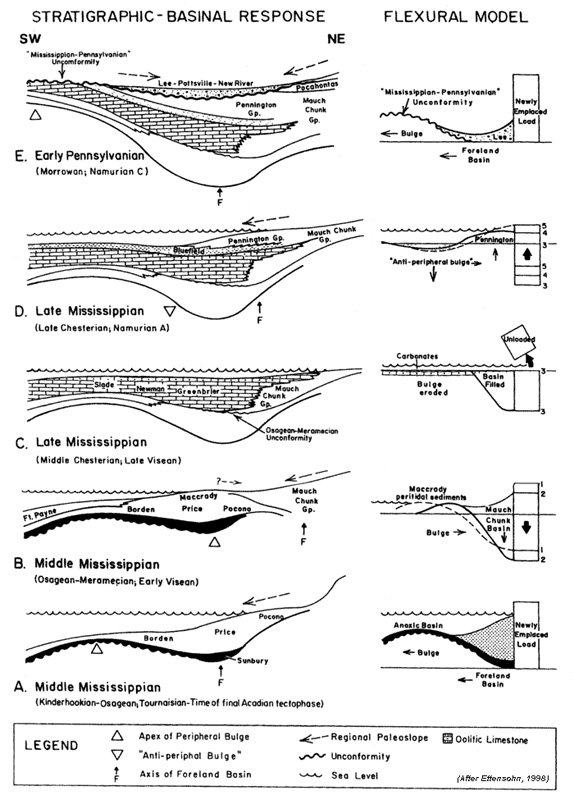

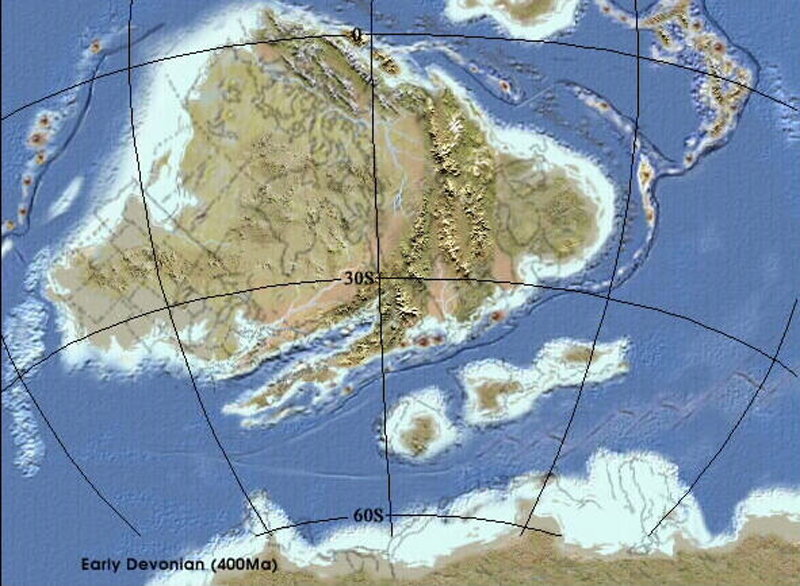

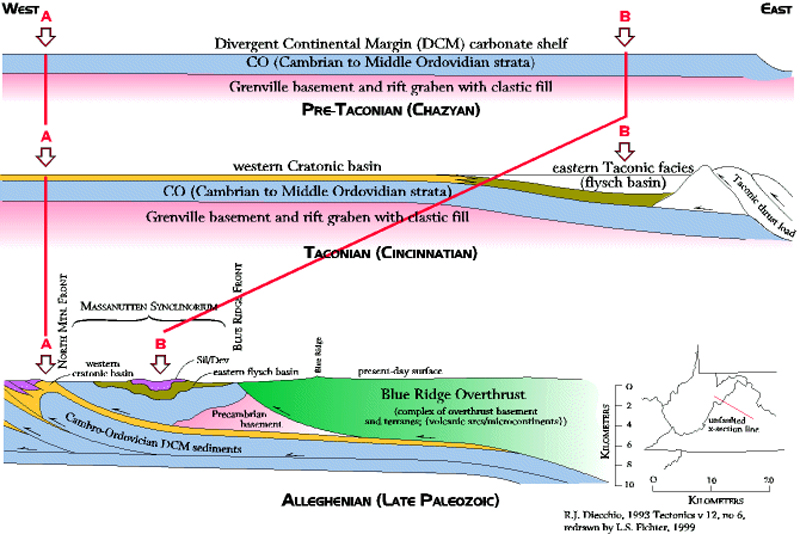

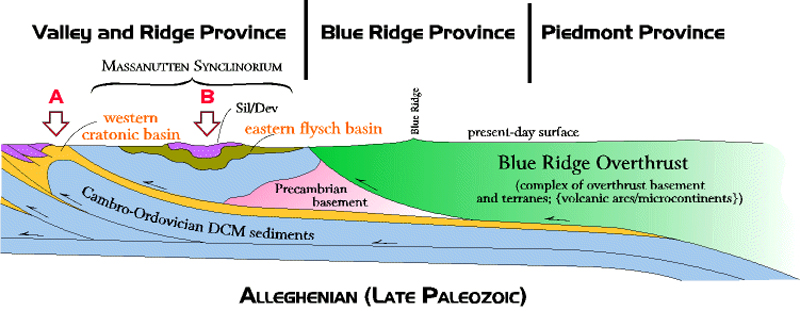

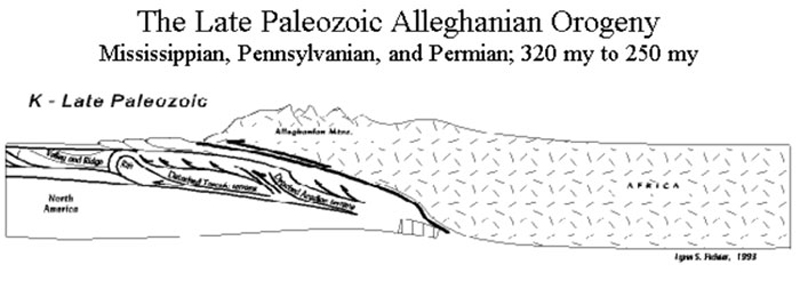

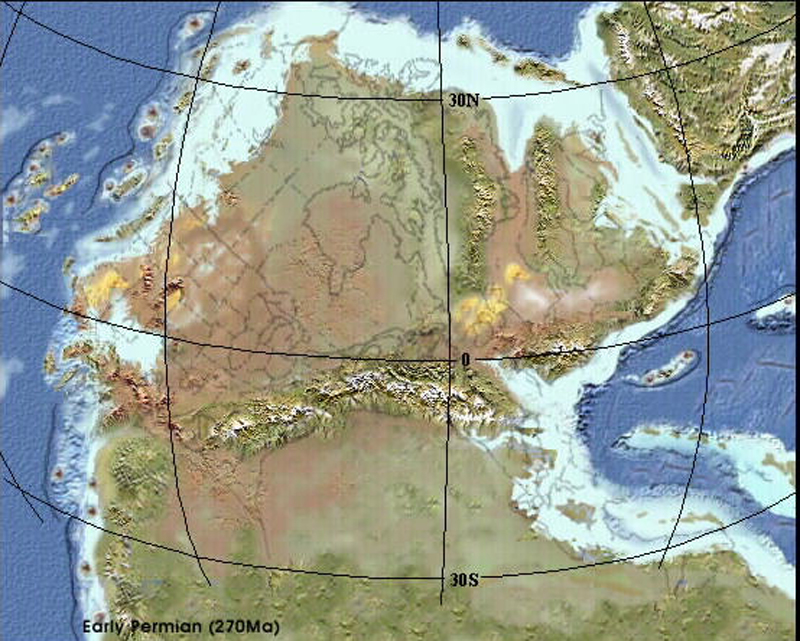

Map of the Appalachian Basin. This foreland basin accumulated Paleozoic sedimentary rocks of Early Cambrian through Early Permian age. North to south, the Appalachian Basin Province crosses New York, Pennsylvania, eastern Ohio, West Virginia, western Maryland, eastern Kentucky, western Virginia, eastern Tennessee, northwestern Georgia, and northeastern Alabama (After R. T. Ryder of USGS). Early Devonian paleogeography of North America, Europe and North Africa courtesy of Ron Blakey, NAU Geology Catskill Delta of the Devonian sedimentary section in the Appalachian Mountains. Illustration by Lynn S. Fichter of the Department of Geology James Madison University, Harrisonburg, Virginia. Devonian Paleogeography Catskill Delta sedimentary fill of the eastern margin of the Appalachian Basin. Illustration by Lynn S. Fichter of the Department of Geology James Madison University, Harrisonburg, Virginia. Distribution of Devonian Pocono sedimentary fill on the eastern margin of the Appalachian Basin. Illustration by Lynn S. Fichter of the Department of Geology James Madison University, Harrisonburg, Virginia. Evolution from Divergent Continental Margin extension Pre-Taconian (Chazyan) to compression of the Taconic belt and then the Alleghenean (Late Paleozoic) overthrusting courtesy of Lynn S. Fichter of the Department of Geology James Madison University Evolution from compression associated Alleghenean (Late Paleozoic) overthrusting (courtesy of Lynn S. Fichter). Silurian - Lower Devonian cross-section that tracks eroding Taconic Mountains and collision with the Avalon terrane (courtesy of Lynn S. Fichter). Evolution of the sediment fill from the Devonian through Cenozoic of the Appalachian Basin (courtesy of Lynn S. Fichter). Cross section the captures the structure and stratigraphy of Acadian Orogeny of the Silurian and Devonian through Cenozoic of the Allegheny Mountains (courtesy of Lynn S. Fichter). Late Missippean paleogeography and the Variscan Orogenic event of North America, Europe and North Africa (courtesy of Ron Blakey, NAU Geology). Late Missippean paleogeography and the Variscan Collision event between North America, Europe and North Africa (courtesy of Ron Blakey, NAU Geology). Cross section the captures the structure and stratigraphy of the Middle Mississipinian of the Appalachian Mountains (courtesy of Lynn S. Fichter). Upper Pennsylvanian Marathon-Ouachita, Applachian, and Variscan Orgenic collision and welding of the Laurentian and North African plates collision and welding of the North American and the North African Plates (courtesy of Ron Blakey, NAU Geology). The Laurentian and North African plates collision and welding of the North American and the North African Plates (courtesy of Lynn S. Fichter). Applachian Plateau, Valley and Ridge, Blue Ridge, Piedmont and Coastal Plain structural cross section of the Appalachian Basin (courtesy of Lynn S. Fichter). Permian Laurentian and North African plates collision and welding of the North American and the North African Plates (courtesy of Ron Blakey, NAU Geology). Satellite image of the Appalachian Mountains in the vicinity of Pound Gap and the Pine Mountain Thrust. Satellite image of the Appalachian Mountains in the vicinity of Pound Gap and the Pine Mountain Thrust. Satellite image of the Appalachian Mountains in the vicinity of Pound Gap and the Pine Mountain Thrust. Newman Pound Gap Newman Pound Gap Newman Pound Gap Field stop Newman Pound Gap Field stop Newman Pound Gap Field stop Newman Pound Gap Field stop Newman Pound Gap Field stop Newman Pound Gap

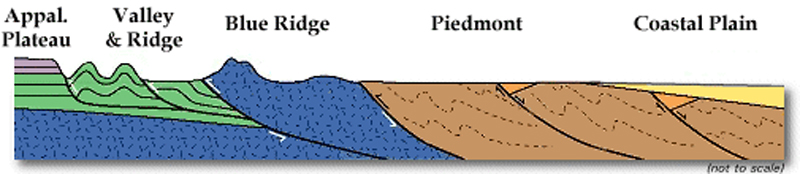

Appalachian Maps, Cross sections and Diagrams

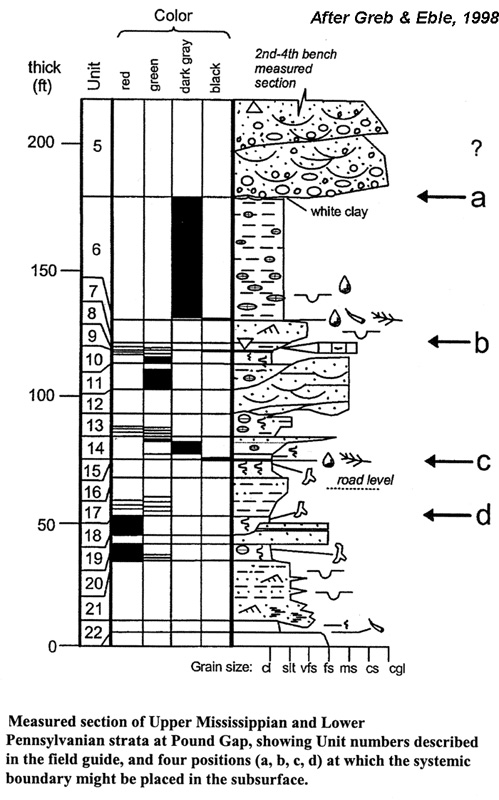

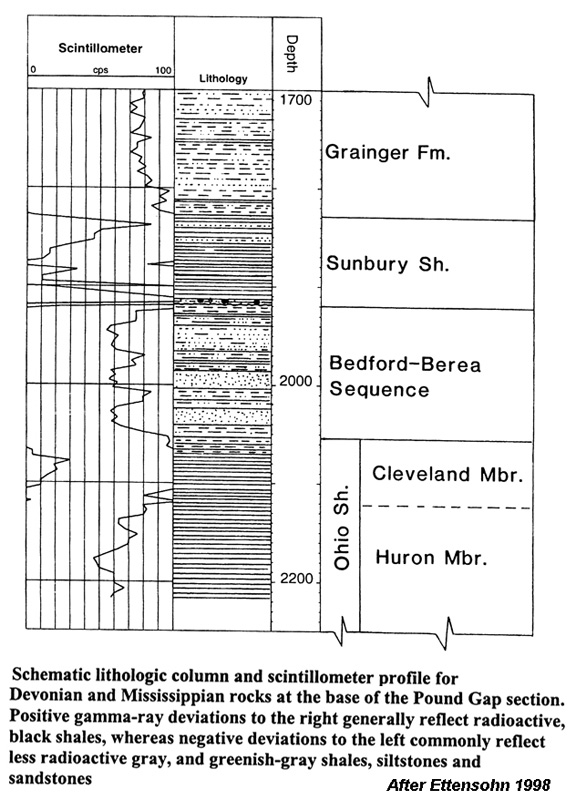

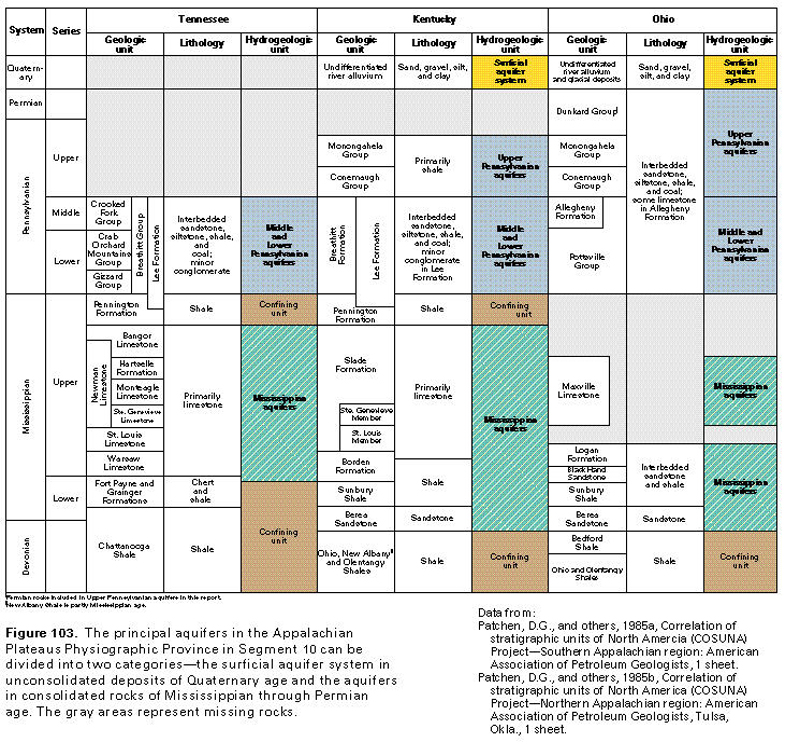

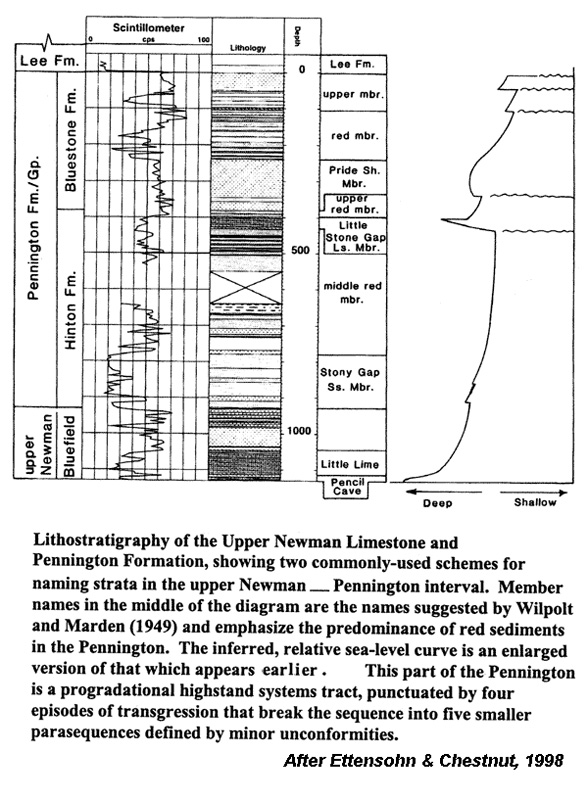

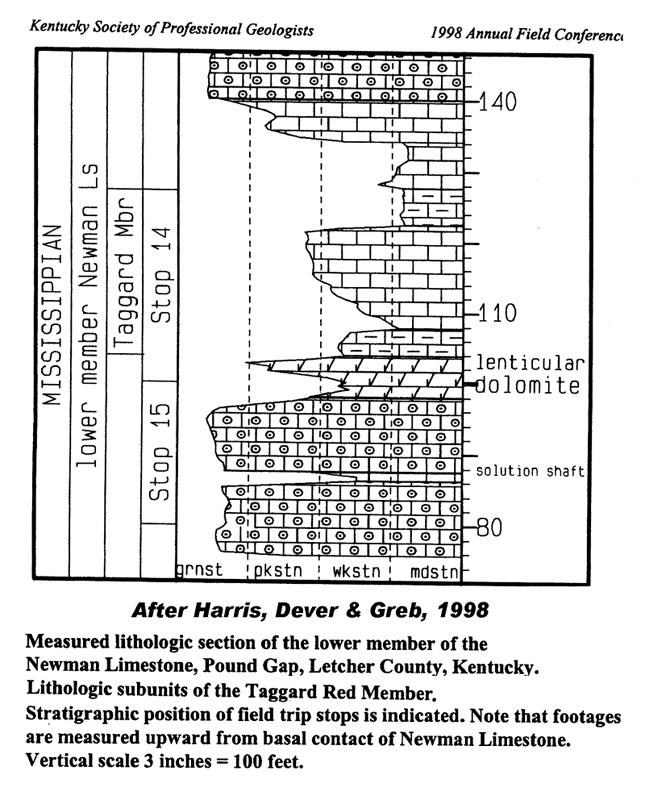

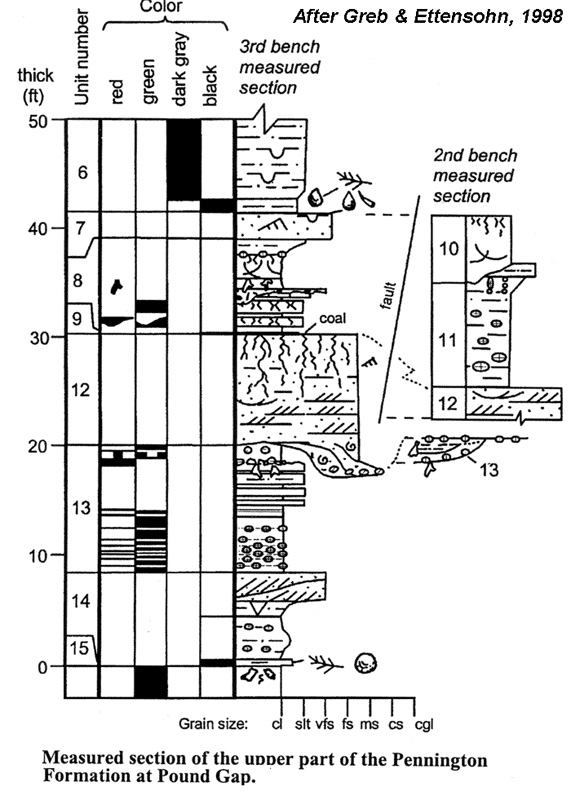

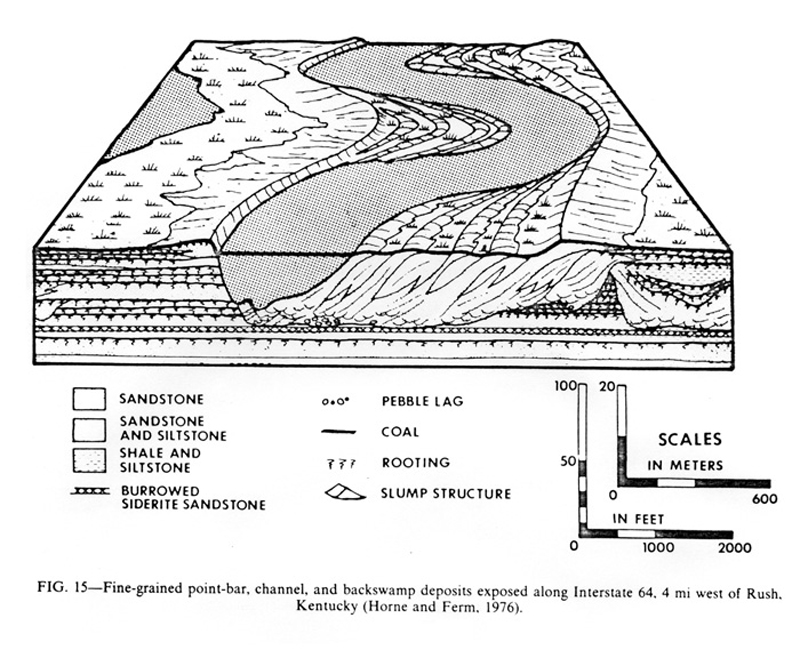

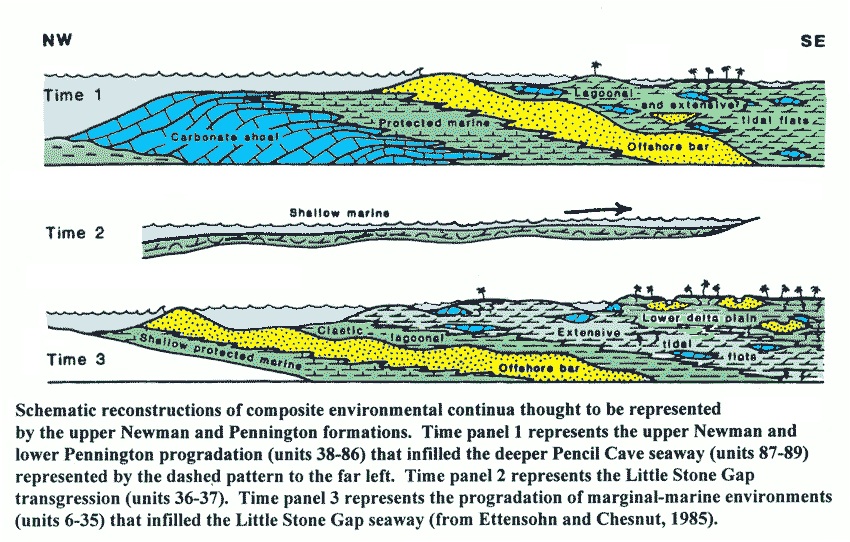

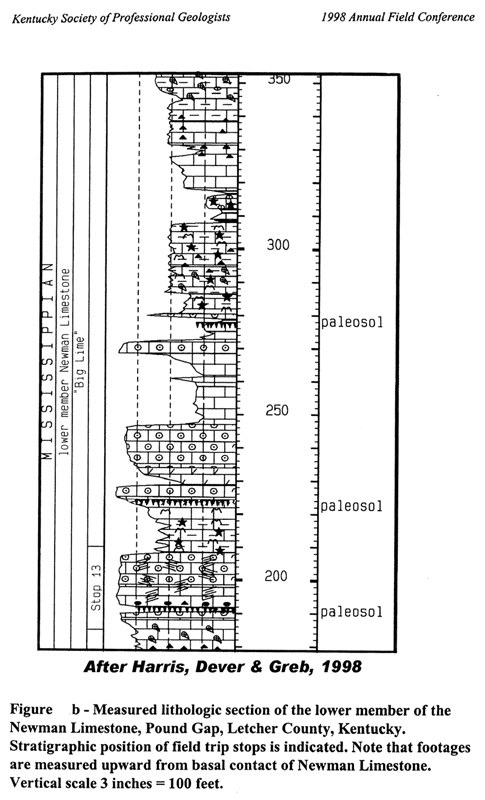

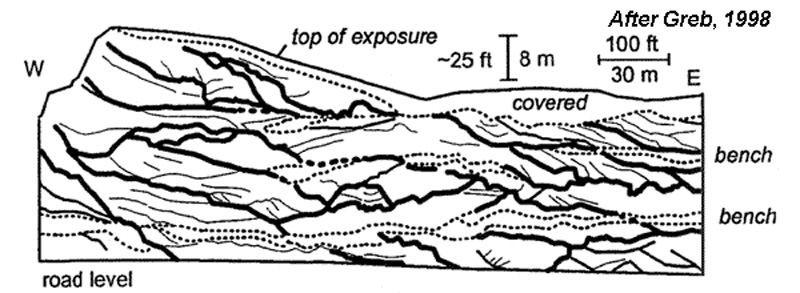

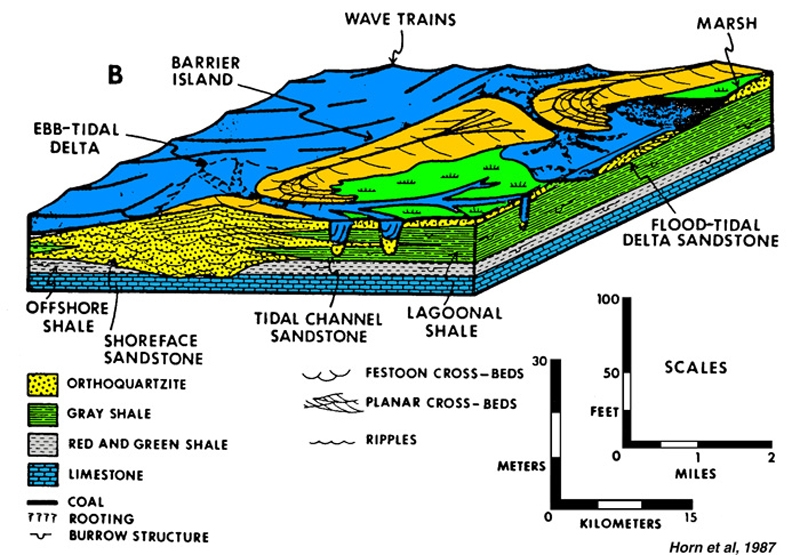

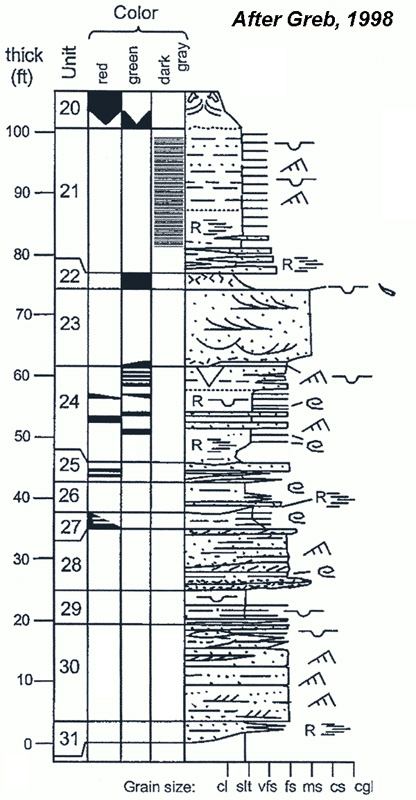

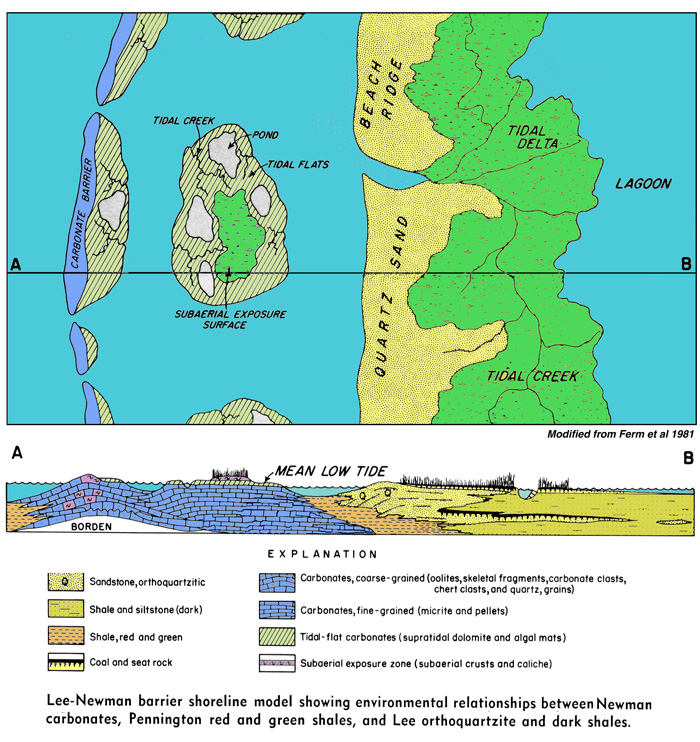

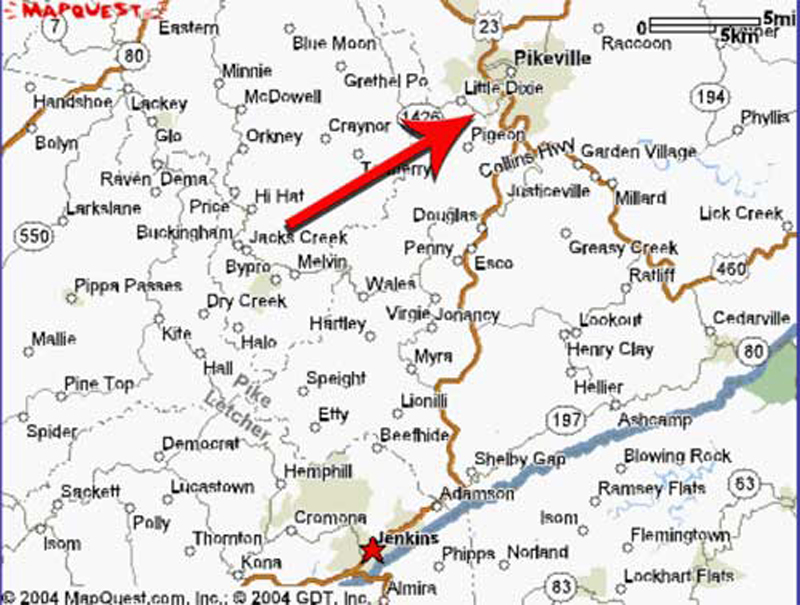

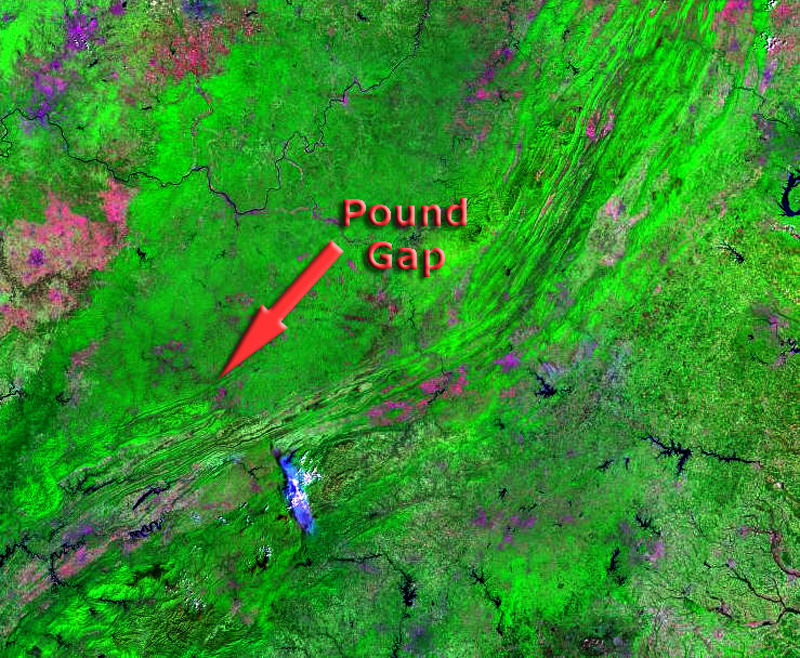

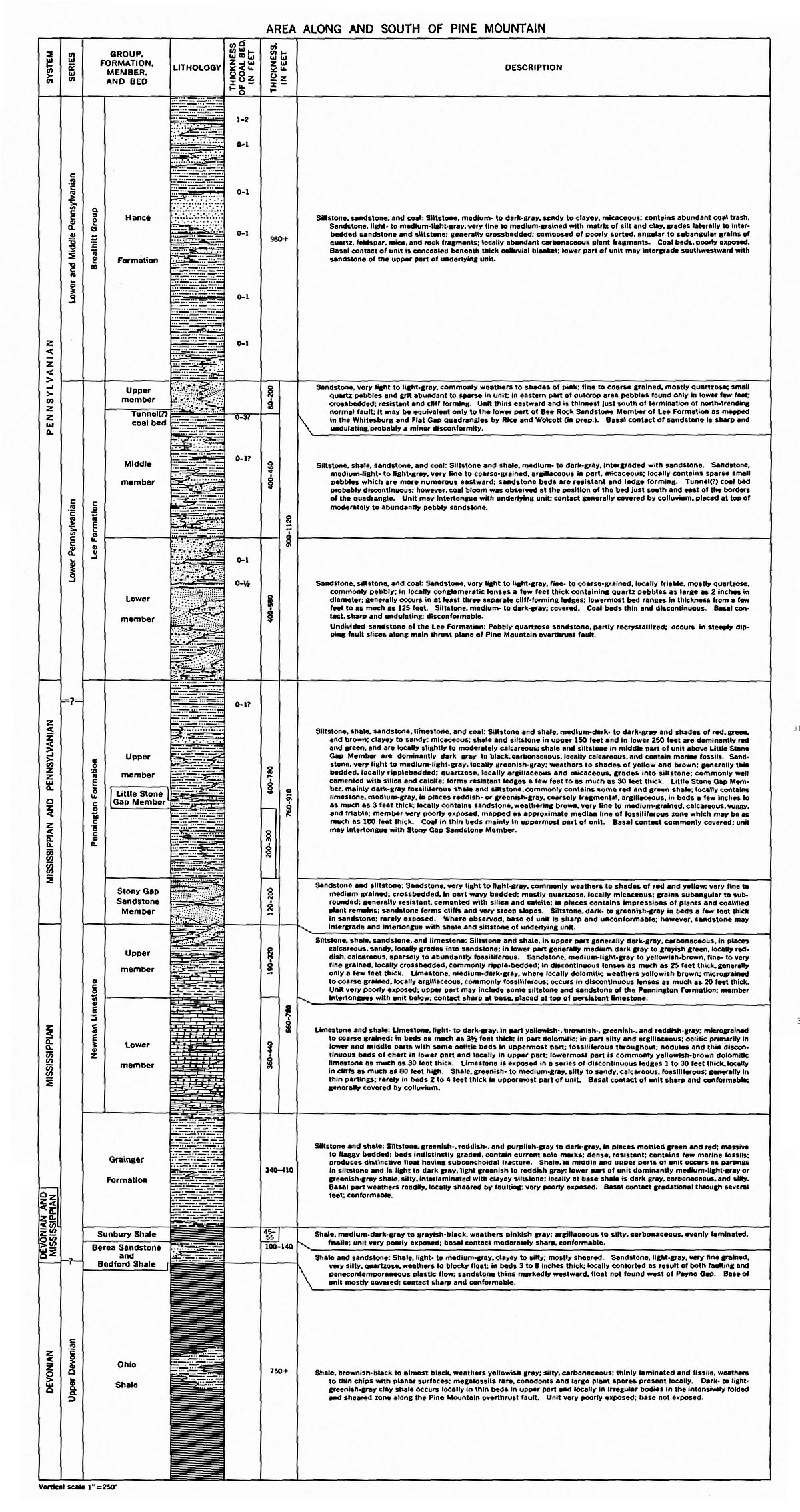

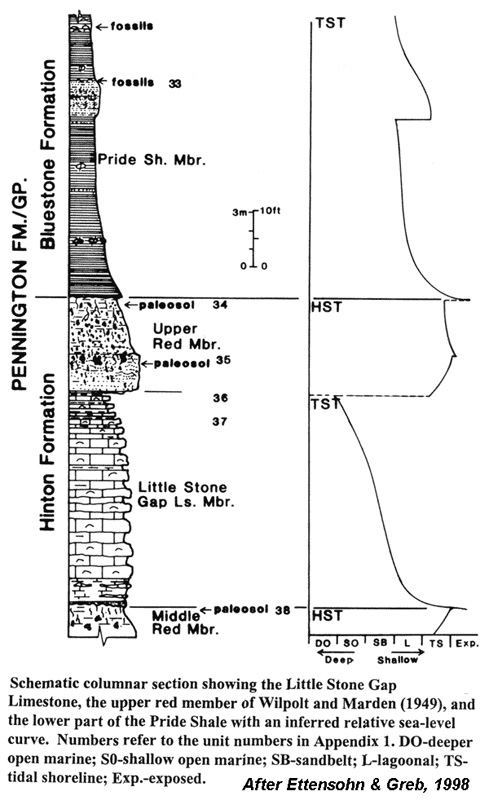

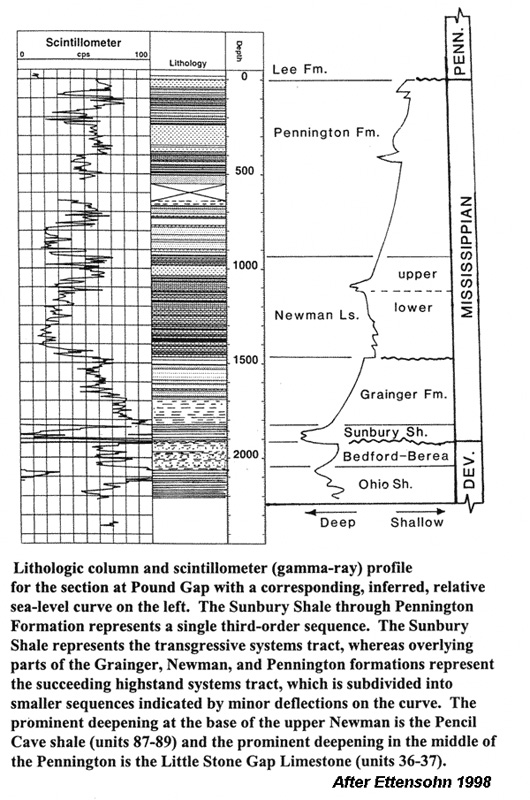

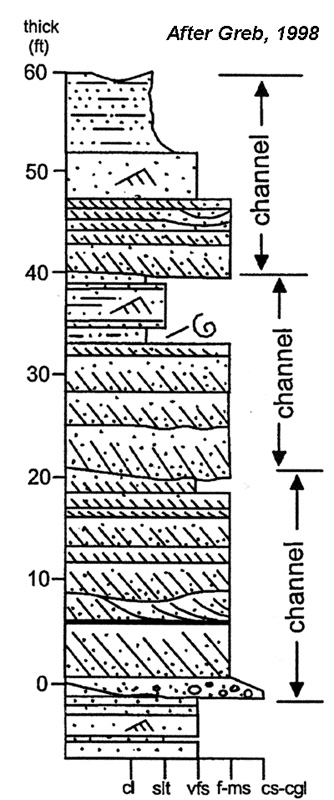

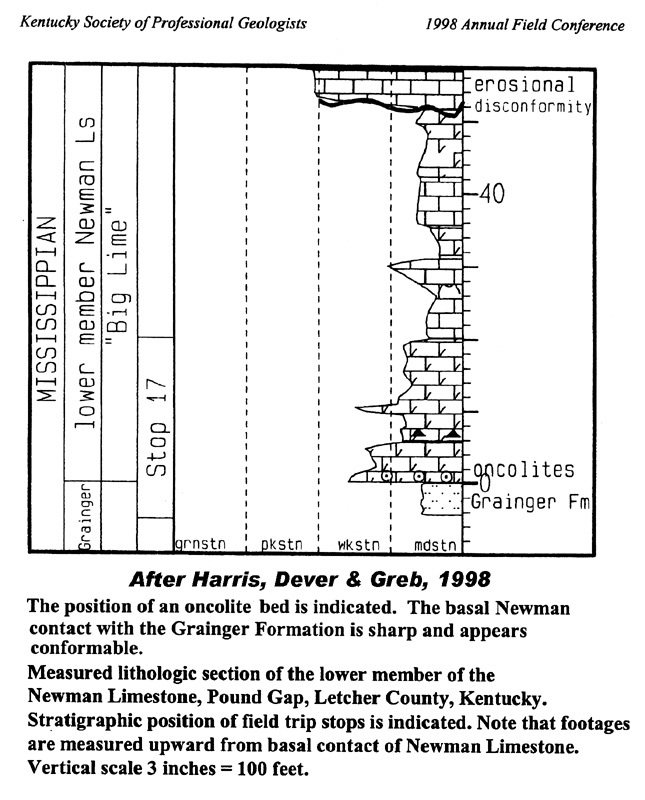

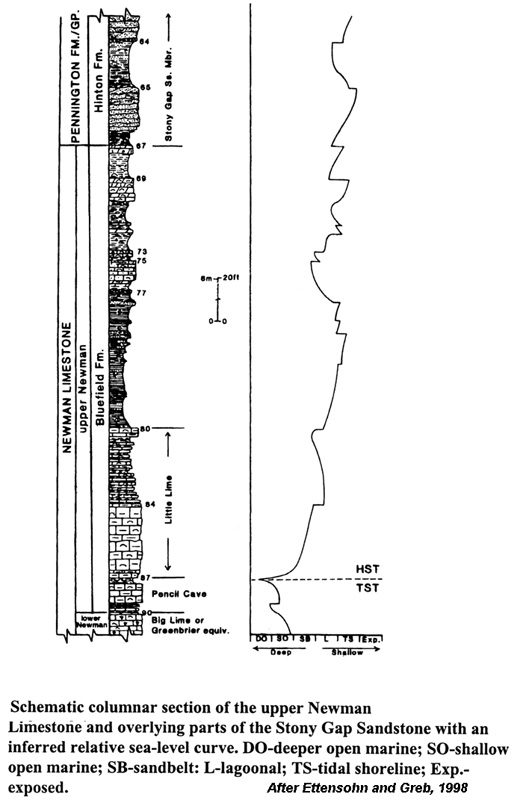

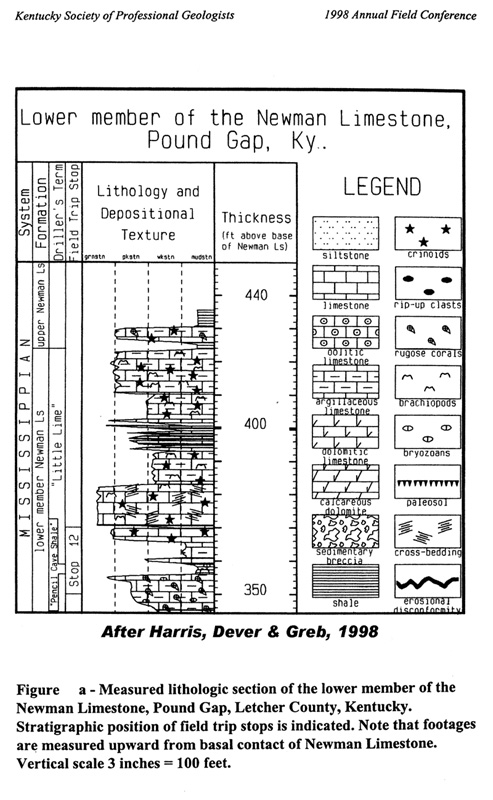

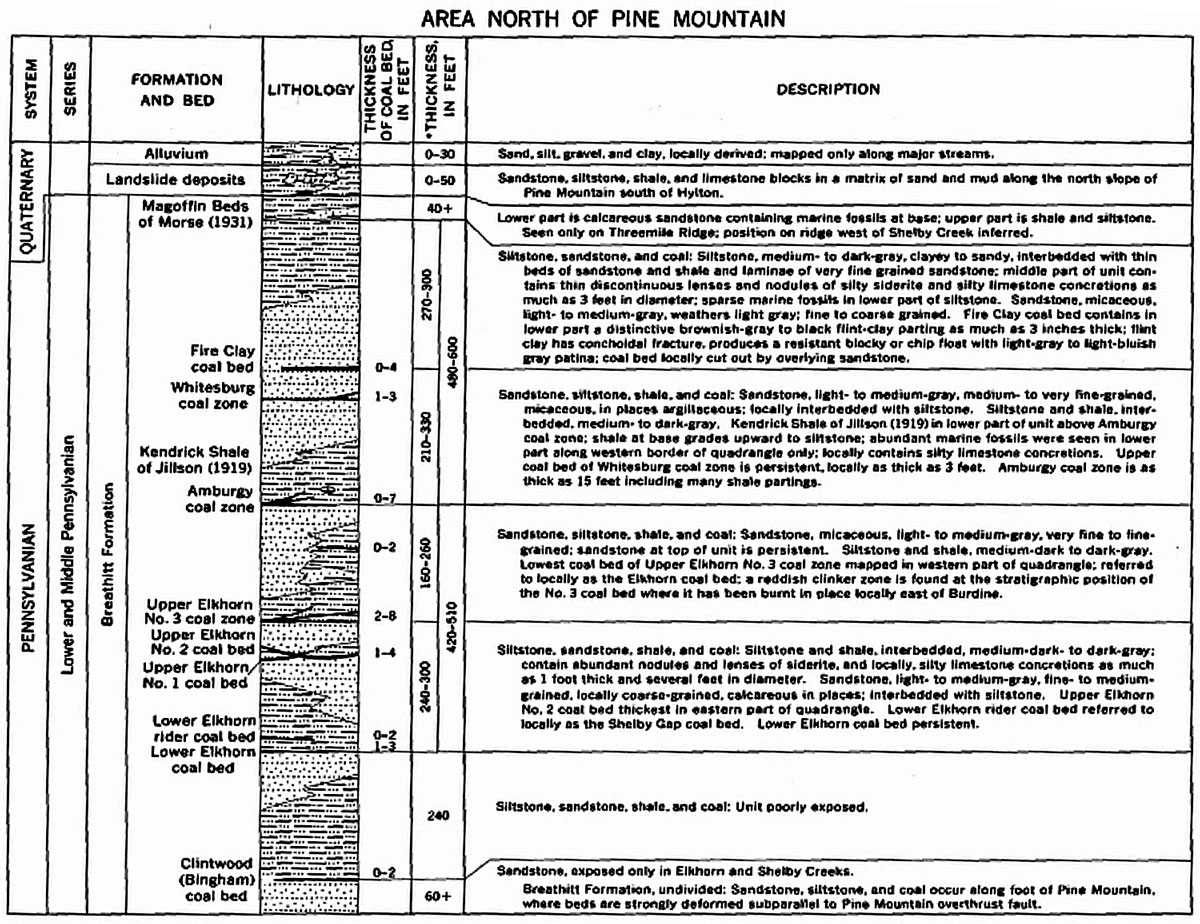

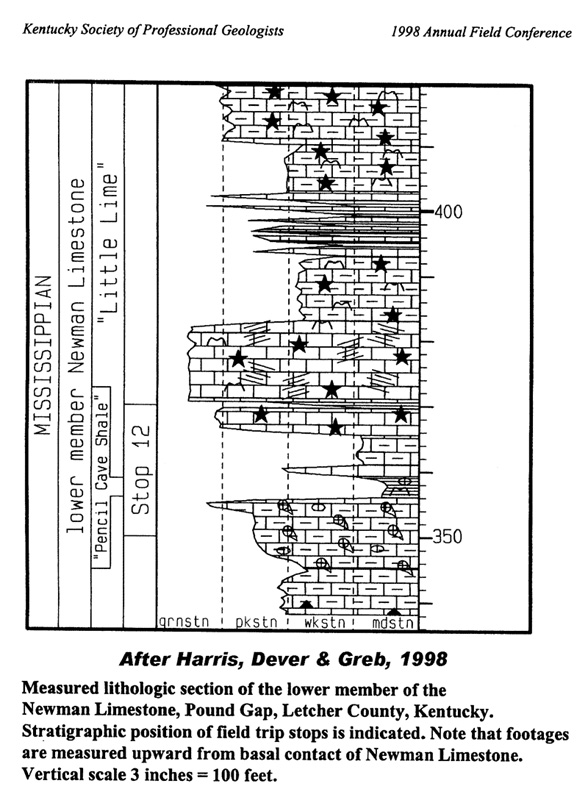

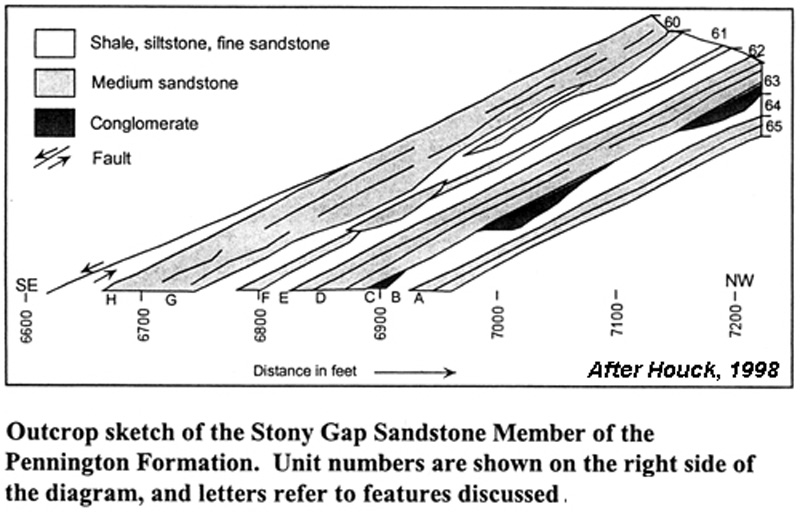

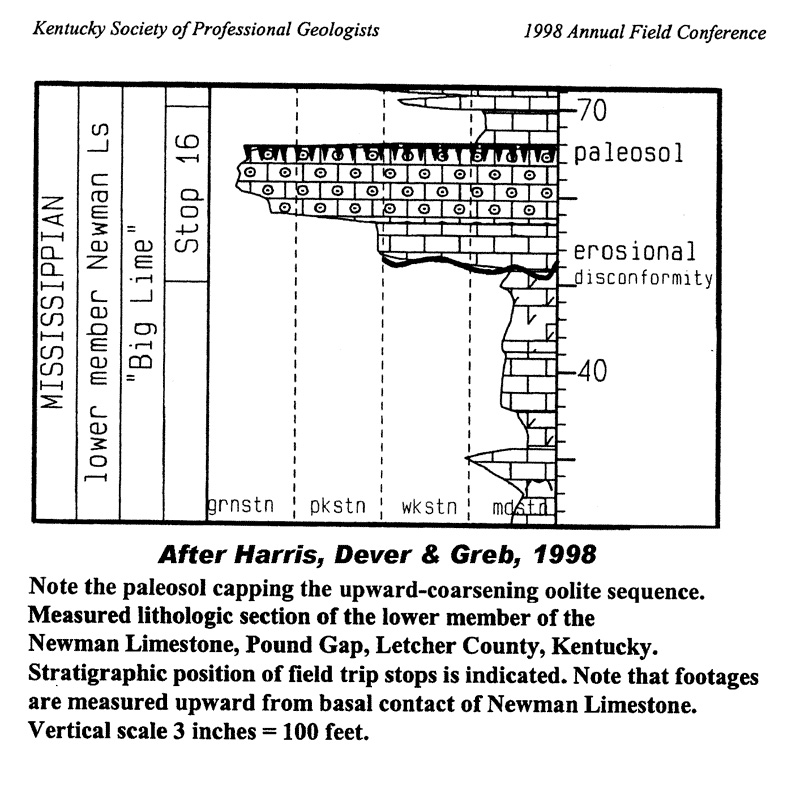

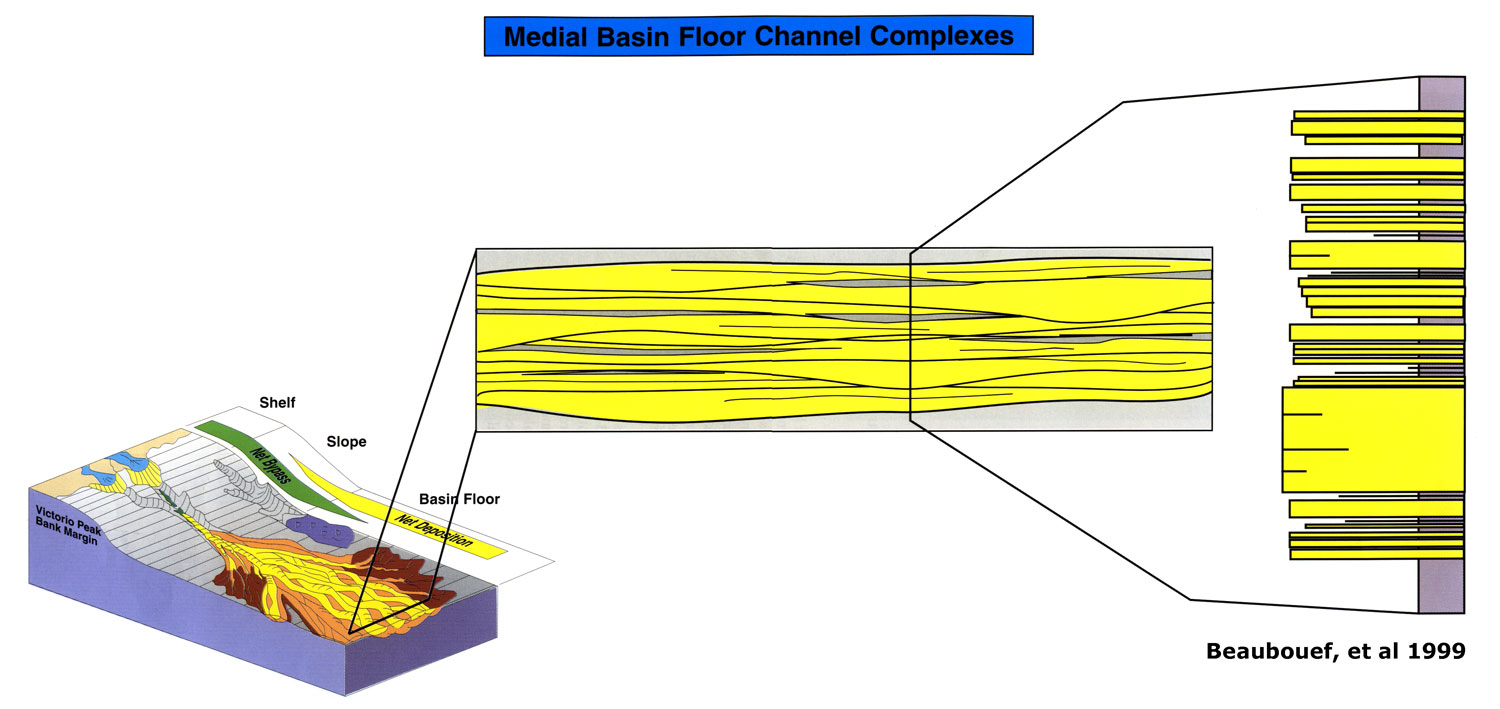

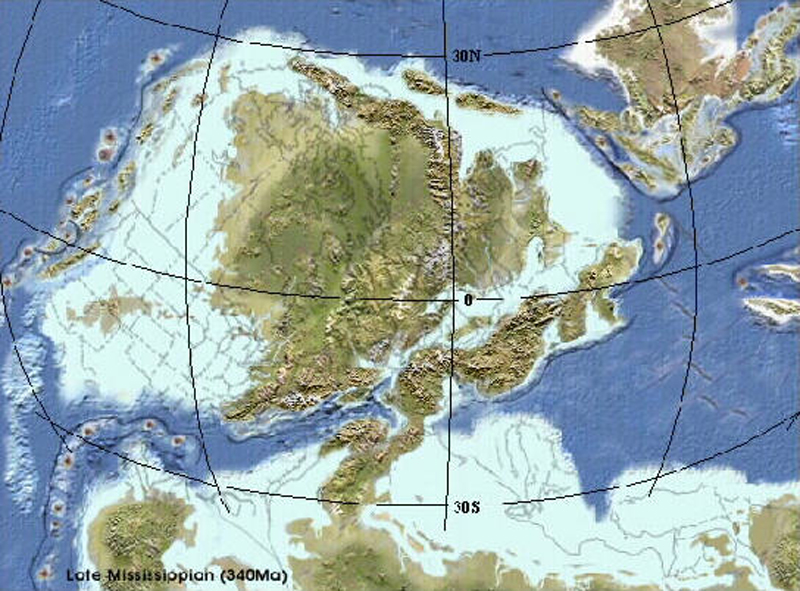

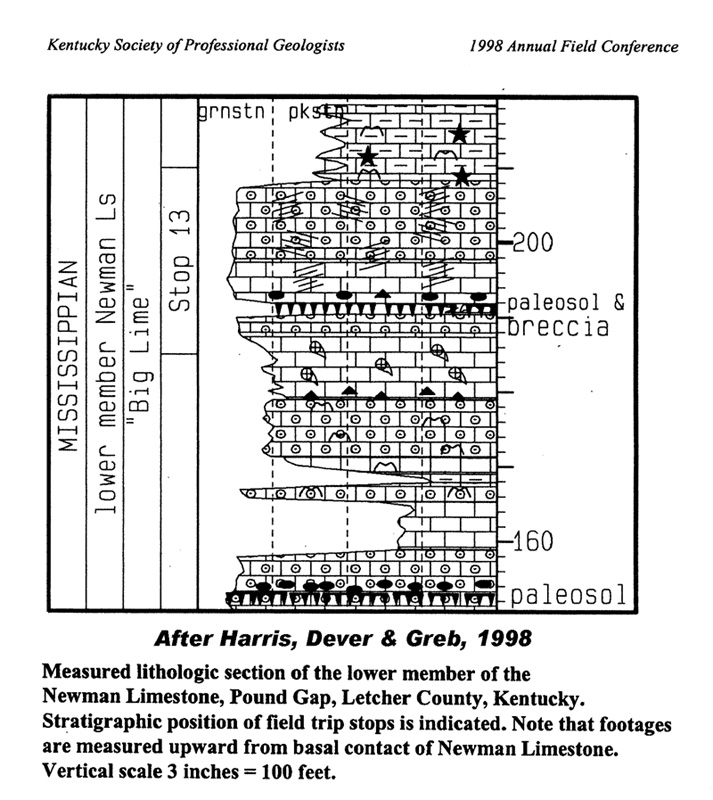

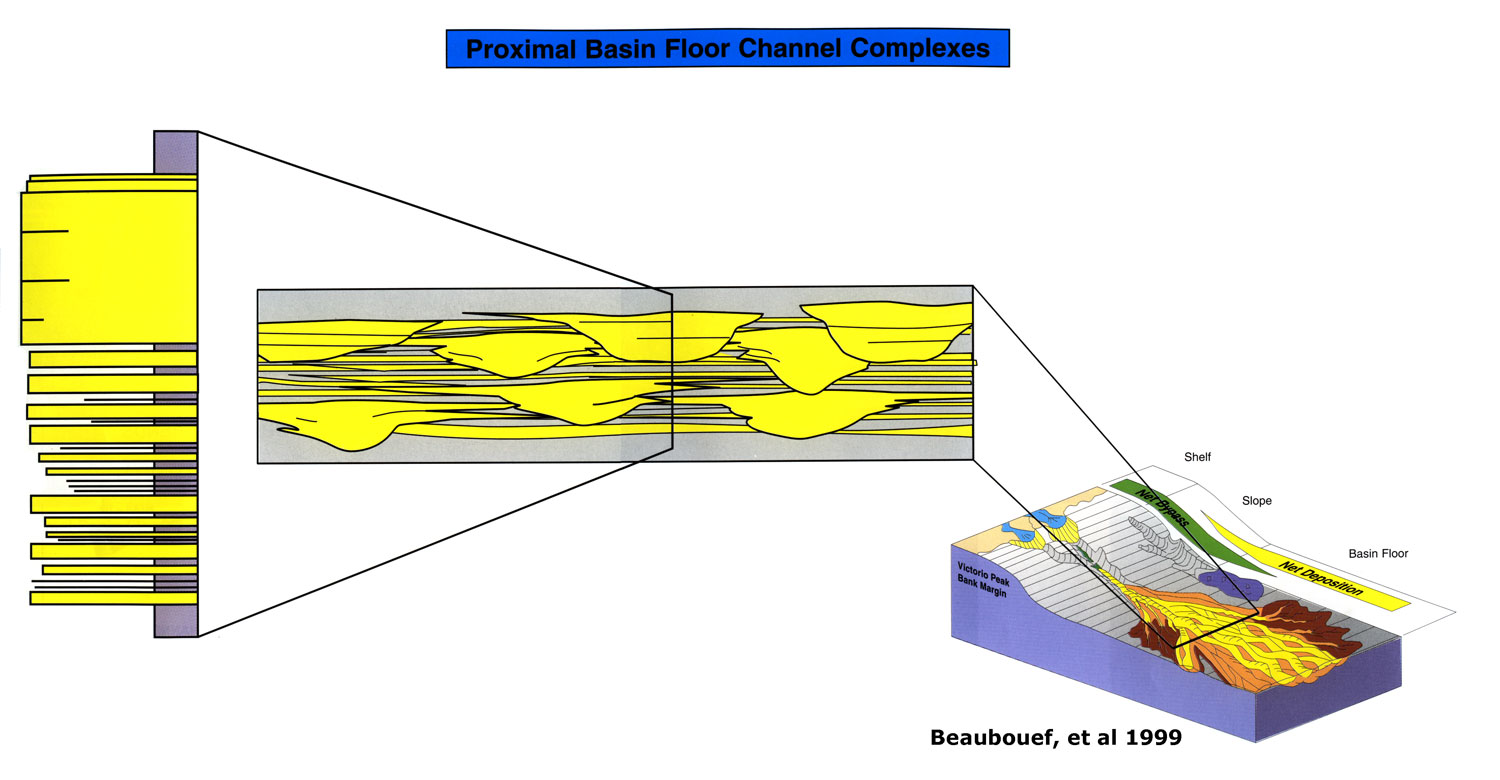

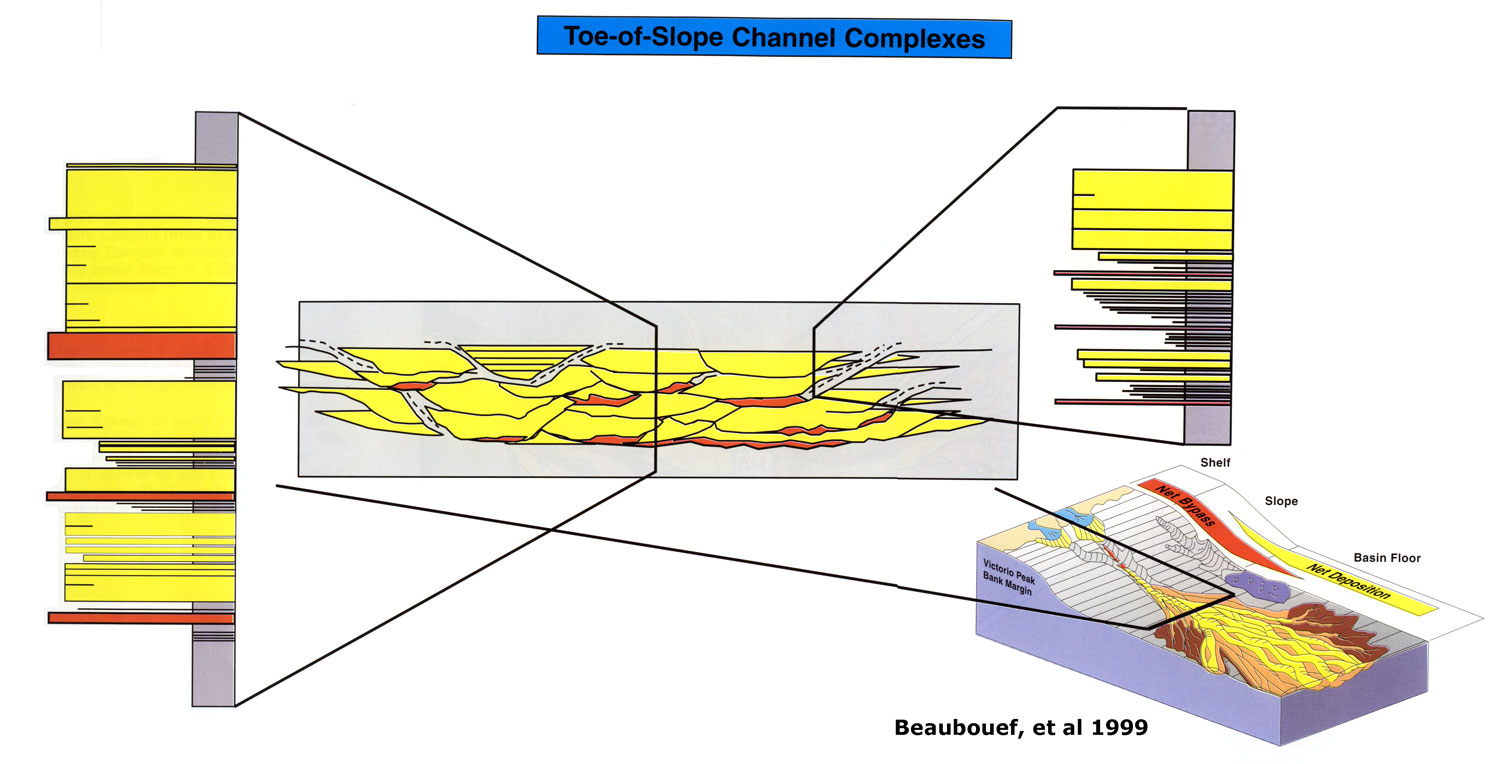

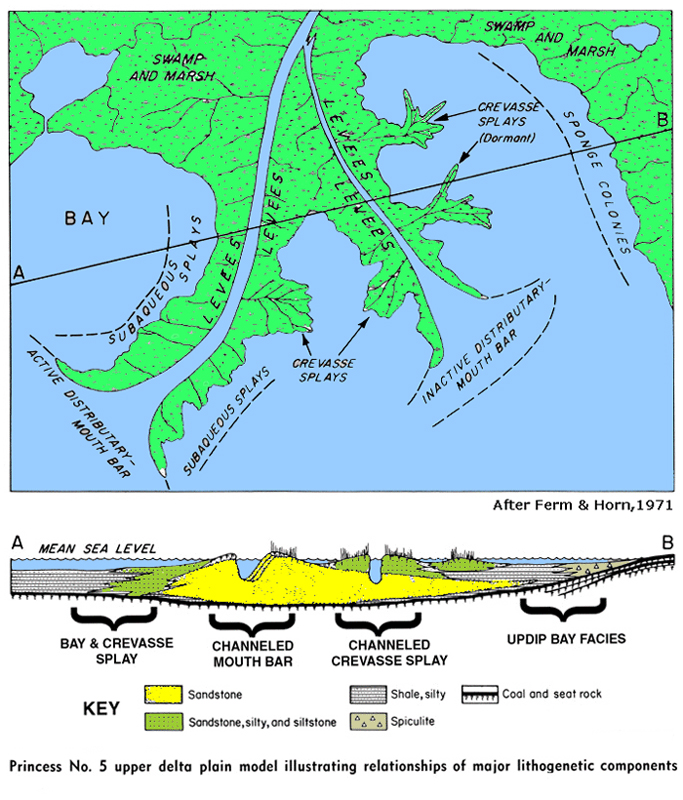

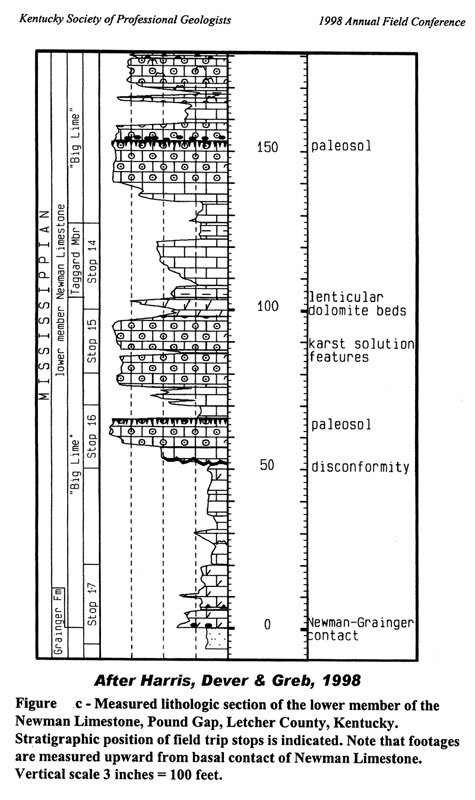

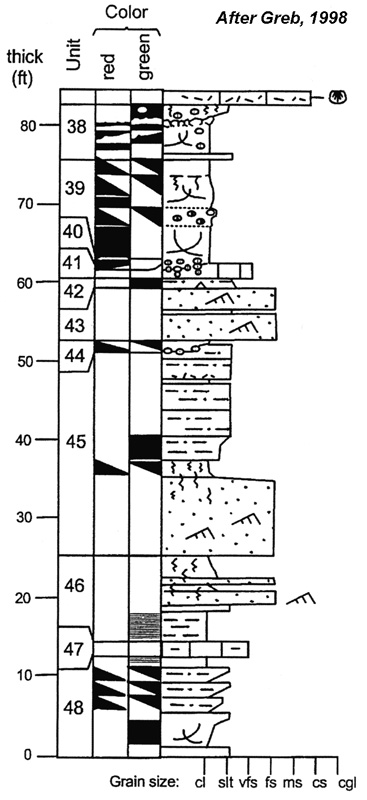

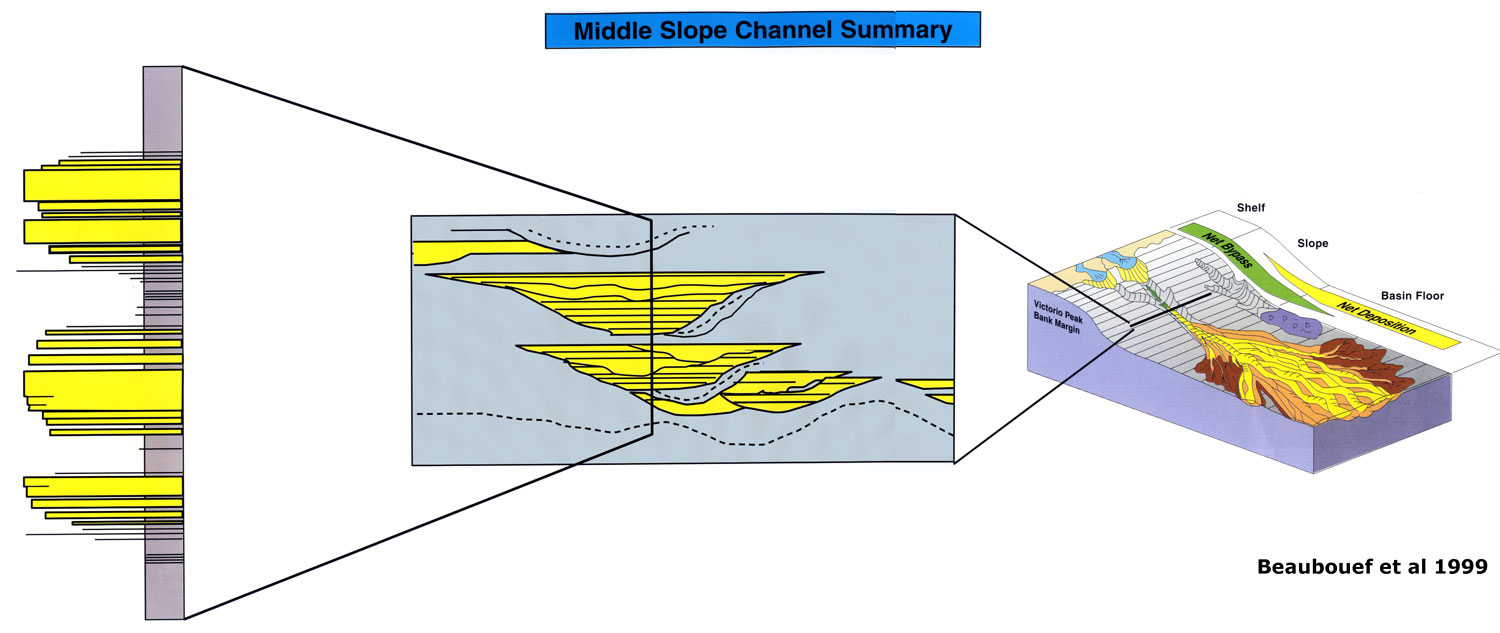

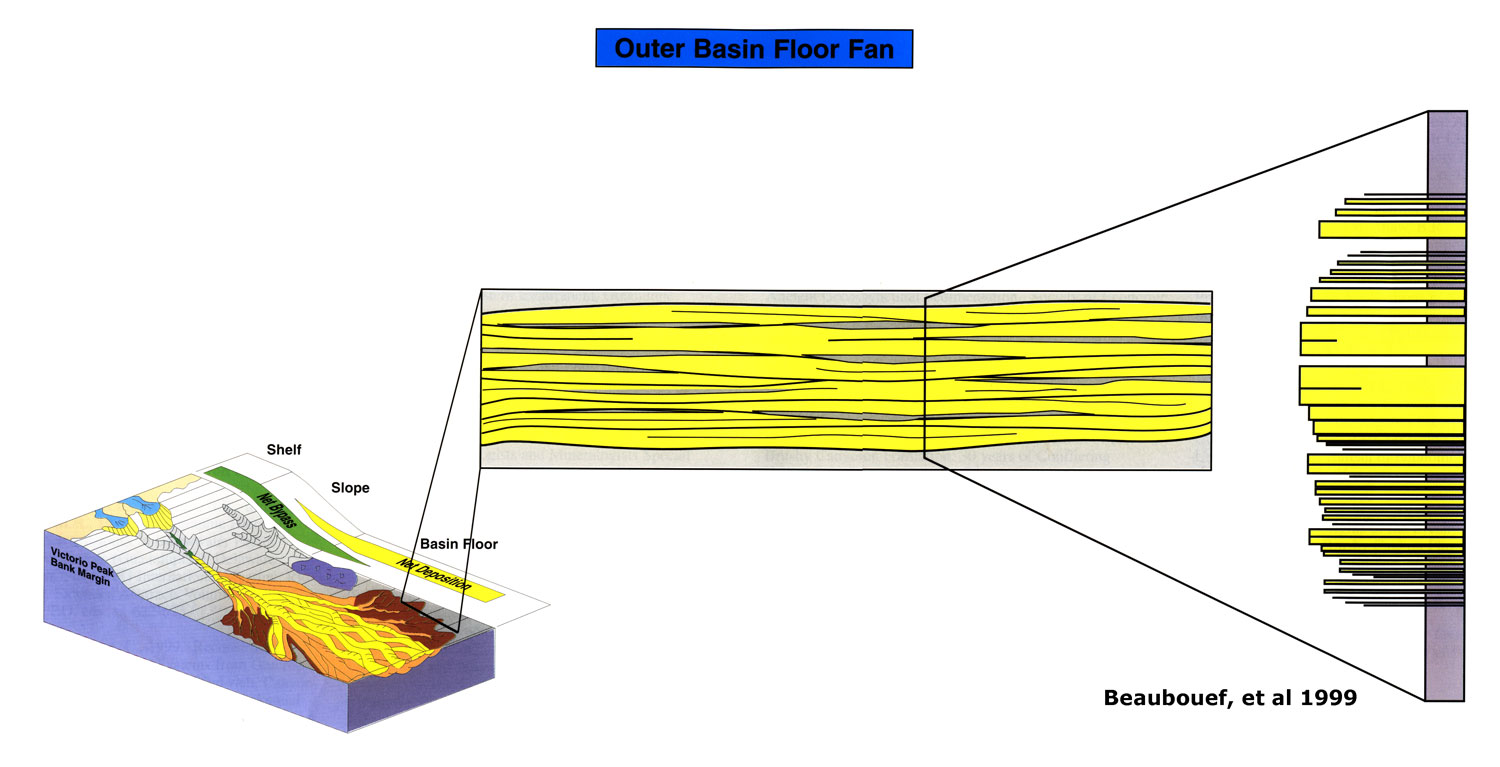

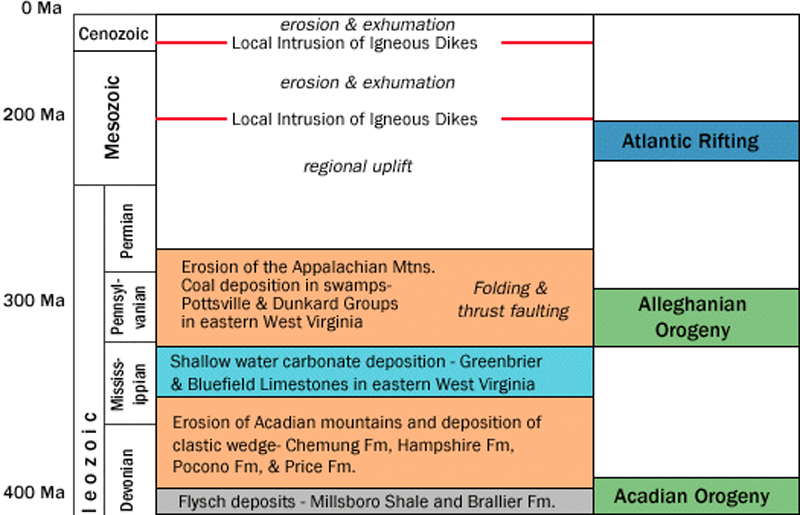

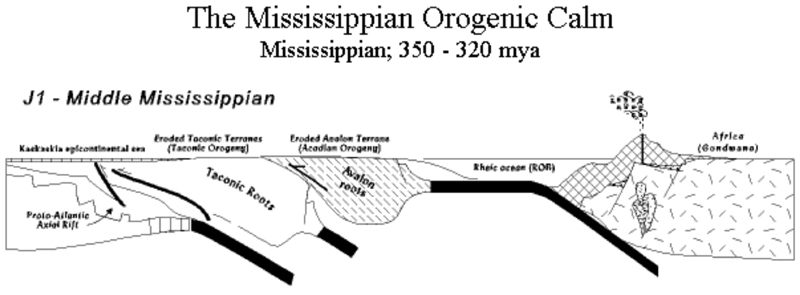

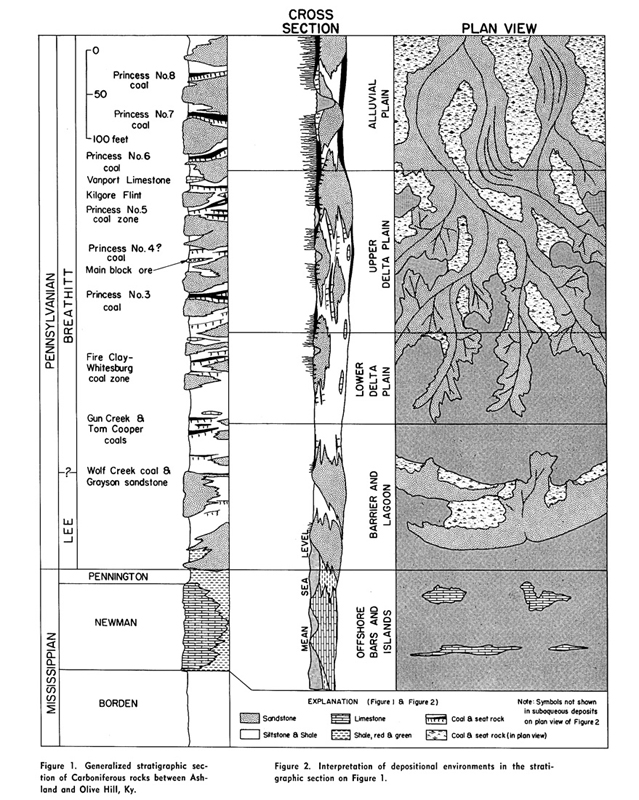

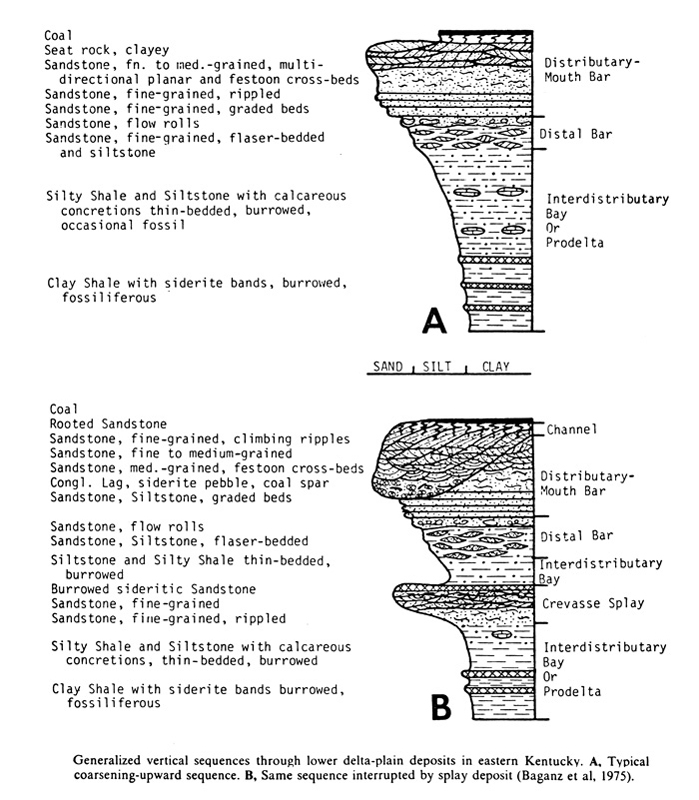

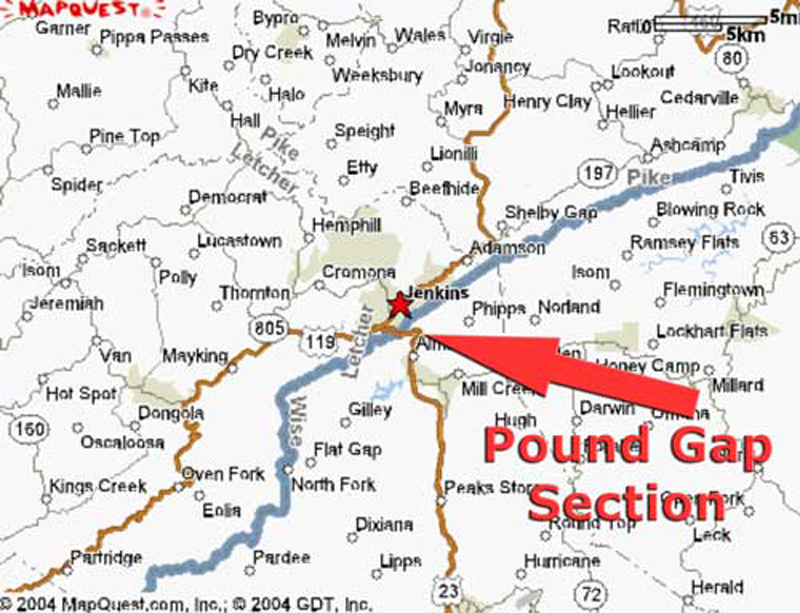

The sources of maps, diagrams and photographic images have been referenced on that particular illustration. The Kentucky Geological Survey is a source of most of the measured sections for Route 23, while many of the maps and diagrams tracking continental paleogeography were created by Dr. Ron Blakey of Northern Arizona University at Flagstaff, Arizona; while the paleogeographic maps and cross sections for the late Paleozoic of the Appalachians were created by Dr. Lynn S. Fichter of the Department of Geology/Environmental Science of James Madison University in Harrisonburg, Virginia.
