Location of major sedimentary basins of Libya with hydrocarbon potential.  Click on hot spots on map to access pages with more information on these basins.

Sirt Basin

Youngest of the Libyan Basins with largest petroleum reserves in Libya and ranked 13th of world's petroleum Basins.

East-West cross section of Sirt Basin (Modified from Roohi, 1996)

East-west cross section in central Sirt Basin showing the oil.
Migration through faults from eastern Maradah Trough to Paleocene Carbonate rocks
on Az Zahrah - Al Hufrah platform. Source: Roohi, 1996 and Hallett, 2002

Ghadamis Basin
The intracratonic Ghadamis Basin located on the western Libya, southern Tunisia and eastern Algeria. May have oil and gas sourced by Middle-Upper Devonian and Basal Silurian hot shales.

North-south cross section of Ghadamis Basin. (Modified after Pallas, 1980)

Murzuq Basin
Large intracratonic Paleozoic Basin, straddling the Boundaries of Algeria, Niger and Chad. The Basin is filled with sediment ranging in age between Cambrian to Quaternary, with maximum total thickness of more than 3000 meter in the central part. .

The potential reservoirs in Muruzq Basin are mainly siliciclastics that include the Memouniat, Hawaz, Acacus and Tadrart Formations.

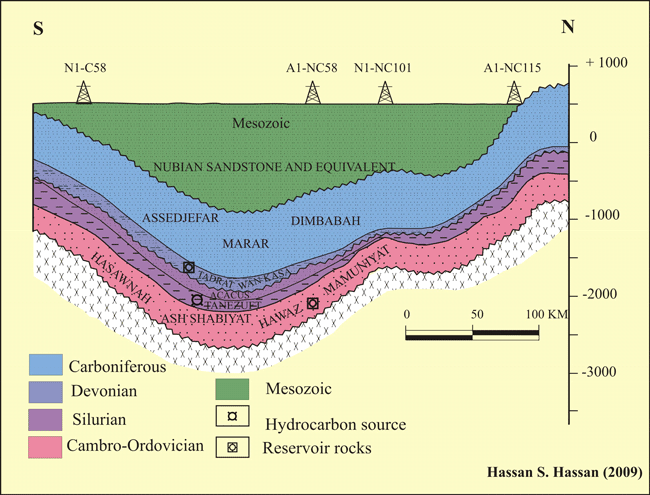

North-south cross section of Muruzq Basin. (Modified after Pallas, 1980)

Al Kufrah Basin
The intracratonic sag of Al Kufrah Basin is oriented northeast-southwest and located in south eastern Libya, it is the third largest Libyan sedimentary Basin of about 400,000 km and has structural elements of varying ages and trends. No commercial discovery has been made to this date but hopes remain high and Libya has seen the entry of several American companies with an interest in the Al Kufrah Basin over the past two years.

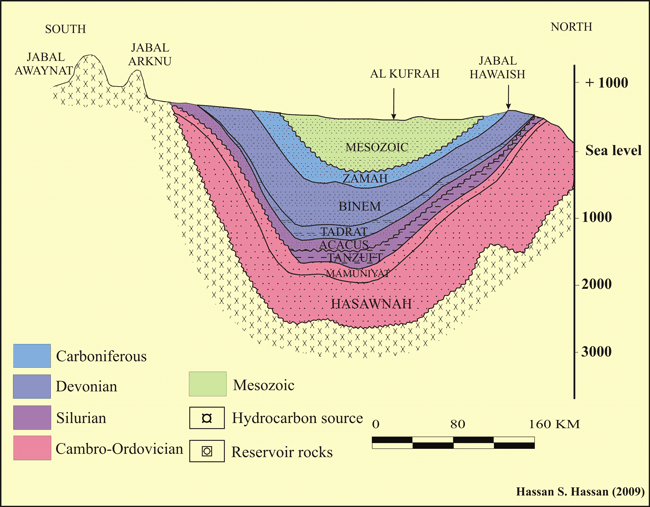

North-south cross section of Al Kufra Basin. (Modified after Pallas, 1980)

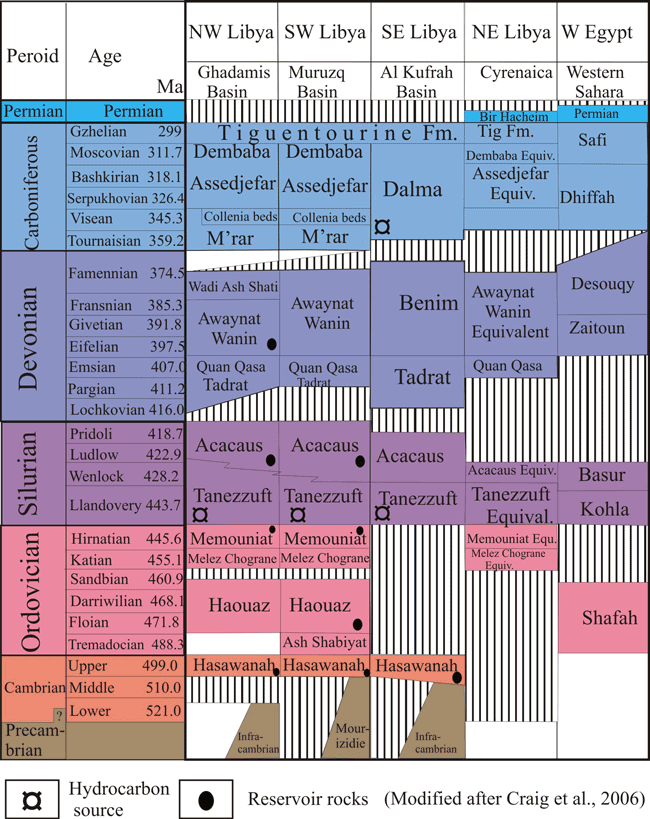

Stratigraphic section of southern and eastern Basins of Libya; Paleozoic correlation
chart between different Basins in Libya. Note the distribution of reservoir
and source rocks. (Modified after Craig et al, 2006).

Cyrenaica
North eastern Libya (referred to as Cyrenaica) is located on the southern margin of Mediterranean Sea and on the northern margin of the African plate. It is divided into two distinctive tectonic provinces.
These are the stable Cyrenaica platform to the south and Al Jabal Al Akhdar uplift to the north. The upper Cretaceous and Tertiary rocks of Cyrenaica contain several potential reservoir and seal rocks.

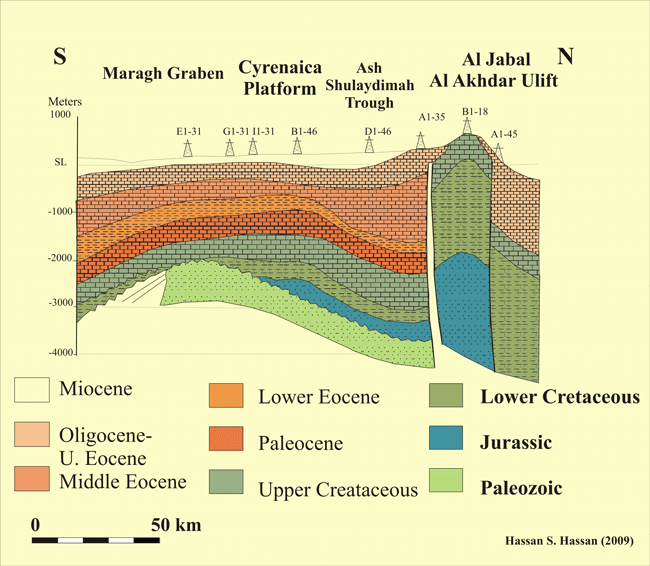

North-South X-section of Cyrenaica. (Modified from Hallett, (2002), Pallas (1980), El-Hawat and Shelmani (1993)

Tripolitanian Offshore NW Libya
Contains the El Bouri oil field is the largest giant oil field discovered (1976) so far in the Mediterranean Sea in Lower Eocene Jdeir Formation. The trapping styles in the Basin are mainly stratigraphic buildup and minor faulted structures.

Offshore NW Libya

Stratigraphic section of Offshore NW Libya. Sources: Hammuda, 1991, Sbeta (1990), and El-Ghoul (1991), Rusk (2001).
