~Kinds of Metamorphism~

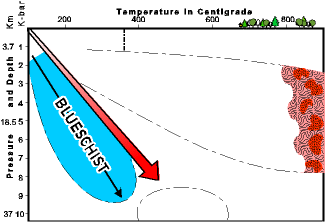

Metamorphic processes vary depending on temperature and pressure (T/P) conditions. The variety of metamorphic processes can be summarized in a T/P phase diagram (below).
Observe that temperature increases across the top from " normal" earth surface conditions to nearly 1000 degrees C. Pressure as well as depth (km) is plotted on the left side of the diagram with the earth's surface at the top. Pressure is measured in bars. A bar is one atmosphere of pressure, about 14 pounds per square inch. The scale on the phase diagram is in kilobars or thousands of atmosphere of pressure. Note the diagonal red arrow which represents the geothermal gradient, the average increase in temperature with depth.
Observe on the phase diagram above the five kinds of metamorphism:
Hydrothermal metamorphism occurs when hot, chemically active, mineral laden waters interact with a surrounding preexisting rock (called the country rock). Most hydrothermal metamorphism takes place at low pressures and relatively low temperature, as the phase diagram shows. It is one of the most pervasive and widespread types of metamorphism. There are several distinct different types of hydrothermal metamorphism.
- Igneous fluids and pegmatites: The most spectacular hydrothermal metamorphism takes place as an after effect of igneous activity. Magmas have lots of water with dissolved minerals, but as the magma crystallizes the mineral laden water is driven off into the surrounding country rock where it seeps into cracks and pores precipitating the minerals. A pegmatite is a very coarse grained Felsic igneous rock. Pegmatites commonly have single crystals measured in meters, as well as a host of exotic minerals, including some of the most important gem minerals. Hydrothermal deposits of this type also produce many important mineral deposits, from silver and gold to copper.
- Oceanic hydrothermal metamorphism: A second type of hydrothermal metamorphism takes place at oceanic rift centers (Divergent Plate Boundaries). Here magma seeps out onto the ocean floor to form pillow Basalts. While the rock is still hot, sea water percolates into the rocks where chemical reactions take place and minerals are leached out of the rock and carried to the surface where they often form Smokers on the ocean floor.
Contact metamorphism occurs in the " country rock" (the rock intruded by and surrounding an igneous intrusion). Rocks are " baked" from heat escaping from intrusives, often enhanced by hydrothermal fluids. The intensity of metamorphism decreases with distance from the intrusion, until at some distance away the rock is unaltered country rock.
- High Temp/Low Pressure
- Typical Rocks: Hornfels, Quartzite, marble, skarn
The metamorphism often occurs in aureoles, or zones surrounding the intrusion. Close to the intrusion is the Hydrothermal (Or Metasomatic) Aureole where minerals from the hot fluids have their greatest effect. Further away is the thermal aureole where heat is the primary effect. The dimensions of the aureoles are dependent on the size of the intrusive body and the amount of water present. In the absence of fluids, the aureole is very small.
The assemblage of new minerals that grow in the country rock depend on the composition of the country rock. For a complex sedimentary parent of sandstones and Shales, anhydrous (without water) minerals such as Garnet and Pyroxene occur closest to the intrusion, then hydrous (water rich) minerals such as Amphibole and Epidote, and at the lowest intensity, Chlorite and Serpentinite occur.
When an magma intrudes into Carbonates such as Limestone and dolostone, the Carbonate reacts with silica from the hydrothermal fluids to form SKARN. Many special lime-bearing silicate minerals form here.
This is a common, widespread, large scale metamorphism typically ssociated with major orogenic (mountain building) events. Sometimes it is referred to as " regional metamorphism". Barrovian metamorphism produces some of the most common metamorphic rocks, many of which are spectacularly beautiful and thus used as building stones. Please link to Barrovian metamorphism for more detail.
Eclogite metamorphism takes place in the mantle. The parent rock is ultramafic mantle material, such as peridotite. Eclogite is characterized by a pale green sodic Pyroxene (omphacite) and a red Garnet (almandine-pyrope). Associated minerals are rutile, Kyanite, and Quartz, and it is not unusual to have retrograde Amphibole in the rock too. Since Eclogite forms so deep, outcrops are not common.
- Moderate Temp./Very High Pressure
- Typical Rocks: Eclogite
Contributed by Lynn Fichter
